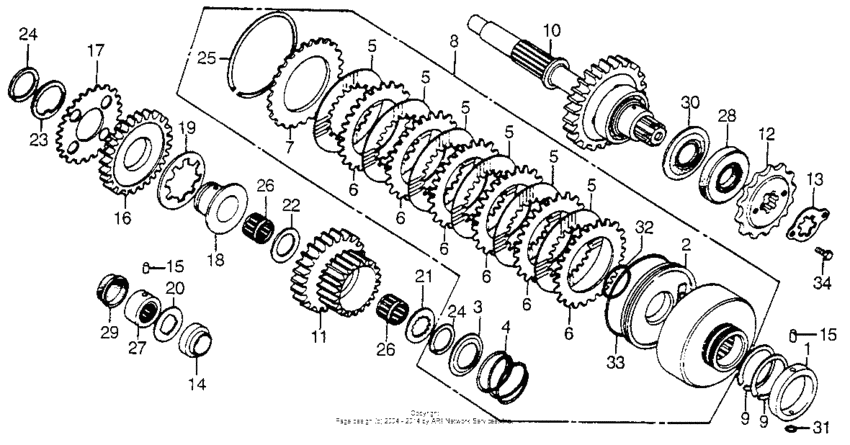

Top clutch + countershaft Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22485-393-010
Guide, seal ring
|
22485-393-010 |
— | ||
|
2
|
2
22530-639-000
Piston comp,clutc
|
22530-639-000 |
— | ||
|
3
|
3
22533-639-000
Seat spring
|
22533-639-000 |
— | ||
|
4
|
4
22534-639-000
Spring
|
22534-639-000 |
— | ||
|
5
|
5
22535-639-505
Disk, clutch
|
22535-639-505 |
— | ||
|
6
|
6
22536-639-000
Plate clutch
|
22536-639-000 |
— | ||
|
7
|
7
22551-612-000
Plate clutch end
|
22551-612-000 |
— | ||
|
7
|
7
22552-612-000
Plate clutch end
|
22552-612-000 |
— | ||
|
7
|
7
22553-612-000
Plate clutch end
|
22553-612-000 |
— | ||
|
7
|
7
22554-612-000
Plate clutch end
|
22554-612-000 |
— | ||
|
7
|
7
22555-612-000
Plate clutch end
|
22555-612-000 |
— | ||
|
7
|
7
22556-639-000
Plate clutch end
|
22556-639-000 |
— | ||
|
8
|
8
22600-393-000
Clutch assy., top
|
22600-393-000 |
— | ||
|
9
|
9
22628-393-003
Ring (52mm)
|
22628-393-003 |
— | ||
|
10
|
10
23220-393-000
Counter shaft
|
23220-393-000 |
— | ||
|
11
|
11
23431-393-000
Gear (38t & 38t)
|
23431-393-000 |
— | ||
|
12
|
12
23801-393-000
Sprocket,drive
|
23801-393-000 |
— | ||
|
13
|
13
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
14
|
14
23911-393-000
Collar (26x38x13)
|
23911-393-000 |
— | ||
|
15
|
15
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
16
|
16
28321-393-300
Gear, starter idle
|
28321-393-300 |
— | ||
|
17
|
17
28322-393-300
Gear,starter idle
|
28322-393-300 |
— | ||
|
18
|
18
28323-393-300
Collar
|
28323-393-300 |
— | ||
|
19
|
19
28324-393-015
Spring, starter idle
Use up to Engine SN 7103452 |
28324-393-015 |
— | ||
|
19
|
19
28324-393-025
Spring, idle starter
Use from Engine SN 7103453 |
28324-393-025 |
— | ||
|
20
|
20
90403-393-000
Washer (20x33.5x2)
|
90403-393-000 |
— | ||
|
21
|
21
90405-393-000
Washer, spline
|
90405-393-000 |
— | ||
|
22
|
22
90407-415-000 Washer (26mm) |
90407-415-000 |
from US $5.18 |
||
|
23
|
23
90408-393-000
Washer (36x45x2)
|
90408-393-000 |
— | ||
|
24
|
24
90602-639-000 Circlip ex36 |
90602-639-000 |
US $6.30 |
||
|
25
|
25
90608-612-000
Circlip,in
|
90608-612-000 |
— | ||
|
26
|
26
91012-393-008
Bearing, needle, 26x30x17 (toyo)
|
91012-393-008 |
— | ||
|
27
|
27
91022-333-018
Bearing,needle
|
91022-333-018 |
— | ||
| replacement | |||||
|
27
|
27
91022-377-008 Needle brg |
91022-377-008 |
US $22.15 |
||
|
27
|
27
91022-377-008 Needle brg |
91022-377-008 |
US $22.15 |
||
|
28
|
28
91203-393-003
Oil seal,34x62x13
|
91203-393-003 |
— | ||
|
29
|
29
91208-393-003
Cap,seal,34x7
|
91208-393-003 |
— | ||
|
30
|
30
91211-393-003 Oil seal,34x66 |
91211-393-003 |
from US $12.74 |
||
|
31
|
31
91301-426-010 O-ring,4.9x2.5 |
91301-426-010 |
from US $3.77 |
||
|
32
|
32
91302-639-000 O-ring32X1.9 |
91302-639-000 |
from US $2.92 |
||
|
33
|
33
91308-612-005
O ring 88x2.2
|
91308-612-005 |
— | ||
|
34
|
34
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
34
|
34
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
34
|
34
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
