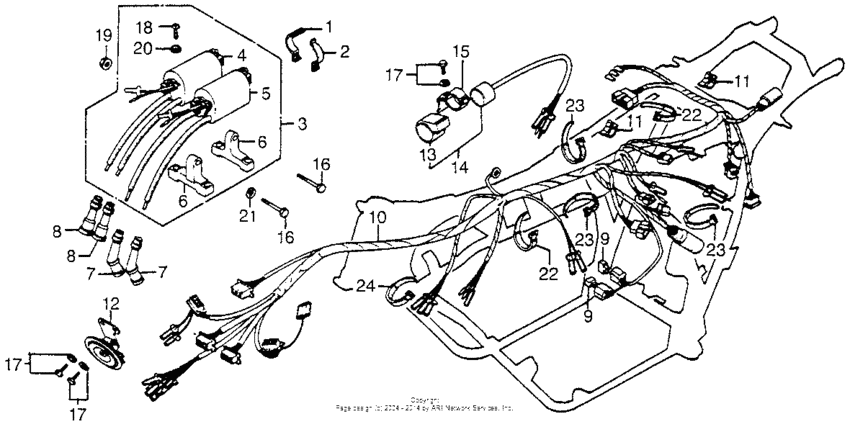

Wire harness + ignition coil Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30151-300-000
Band a
|
30151-300-000 |
— | ||
|
2
|
2
30152-300-000
Band b
|
30152-300-000 |
— | ||
|
3
|
3
30500-300-013 Coil,ignition |
30500-300-013 |
from US $317.02 |
||
|
4
|
4
30501-300-003
Coil,r.ignition
|
30501-300-003 |
— | ||
|
5
|
5
30502-300-003
Coil,l.iginition
|
30502-300-003 |
— | ||
|
6
|
6
30511-300-000
Bracket ignition
|
30511-300-000 |
— | ||
|
7
|
7
30700-GAR-000 Cap assy. |
30700-GAR-000 |
from US $16.86 |
||
|
8
|
8
30700-MW3-000 Cap assy. |
30700-MW3-000 |
from US $13.55 |
||
|
9
|
9
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
10
|
10
32100-393-770
Harness,wire
|
32100-393-770 |
— | ||
|
11
|
11
32161-393-003 Clip, wire harness |
32161-393-003 |
from US $3.92 |
||
|
12
|
12
38100-392-621
Horn assy
|
38100-392-621 |
— | ||
|
13
|
13
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
14
|
14
38550-393-770
Warning unit, speed
|
38550-393-770 |
— | ||
|
15
|
15
38553-300-000
Stay, signal unit
|
38553-300-000 |
— | ||
|
16
|
16
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
17
|
17
93402-060-160-0 Bolt-washer6X16 |
93402-060-160-0 |
from US $0.52 |
||
|
18
|
18
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
19
|
19
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
20
|
20
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
21
|
21
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
22
|
22
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
23
|
23
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
24
|
24
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
