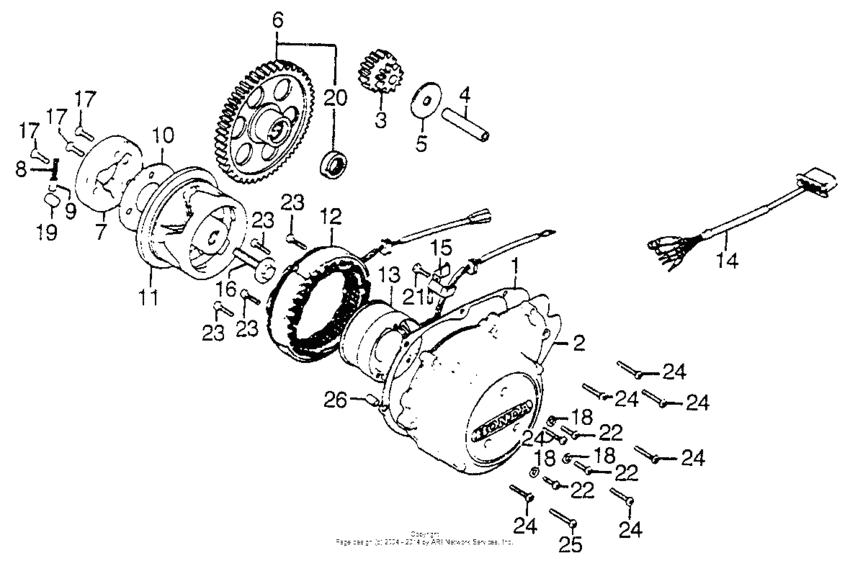

Alternator Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11397-300-306 Gasket |
11397-300-306 |
from US $23.97 |
||
|
2
|
2
11631-300-040 Cover, alternator |
11631-300-040 |
US $378.76 |
||
|
3
|
3
28101-300-000
Gear,reduction
|
28101-300-000 |
— | ||
|
4
|
4
28106-300-000
Shaft,reduction
|
28106-300-000 |
— | ||
|
5
|
5
28109-300-000
Pl,gear set
|
28109-300-000 |
— | ||
|
6
|
6
28110-300-000
Gear,starting
|
28110-300-000 |
— | ||
|
7
|
7
28120-300-000
Clutch,starting
|
28120-300-000 |
— | ||
|
8
|
8
28125-516-030 Spring |
28125-516-030 |
from US $2.59 |
||
|
9
|
9
28126-516-020 Cap,staringclutch |
28126-516-020 |
from US $10.36 |
||
|
10
|
10
28128-516-000
Plate,starting
|
28128-516-000 |
— | ||
|
11
|
11
31101-393-005
Rotor
|
31101-393-005 |
— | ||
|
12
|
12
31102-393-025
Stator
|
31102-393-025 |
— | ||
|
13
|
13
31103-393-015
Coil comp.,field
|
31103-393-015 |
— | ||
|
14
|
14
31110-393-000
Wire harness, altntr
|
31110-393-000 |
— | ||
|
15
|
15
32116-300-010
Plate,cord set
|
32116-300-010 |
— | ||
|
16
|
16
90014-392-010
Bolt,rotor set
|
90014-392-010 |
— | ||
|
17
|
17
90053-300-000
Screw,flat,8x22
|
90053-300-000 |
— | ||
|
18
|
18
90425-300-000 Washer (11mm) |
90425-300-000 |
from US $3.58 |
||
|
19
|
19
91101-516-000 Roller (15x13) |
91101-516-000 |
from US $4.74 |
||
|
20
|
20
91215-300-003 Oil seal |
91215-300-003 |
US $10.57 |
||
|
21
|
21
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
22
|
22
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
23
|
23
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
24
|
24
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
25
|
25
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
