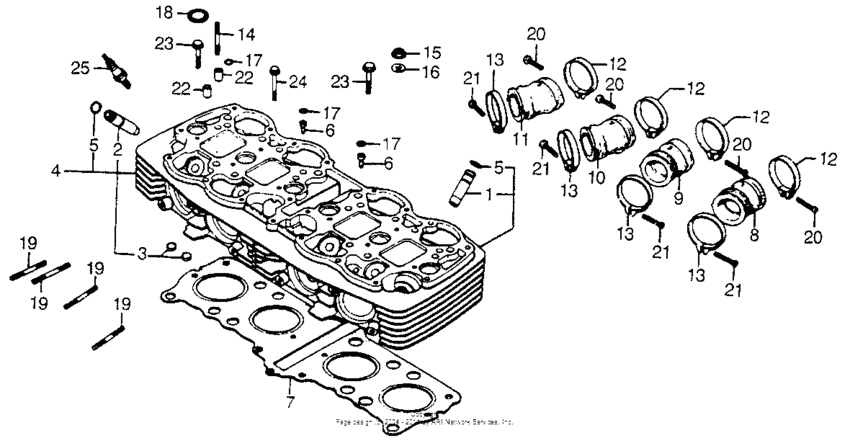

Cylinder head Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12021-410-405
Guide, valve
|
12021-410-405 |
— | ||
|
2
|
2
12021-410-405
Guide, valve
|
12021-410-405 |
— | ||
|
2
|
2
12023-410-300
Superceded
|
12023-410-300 |
— | ||
|
3
|
3
12620-286-000 Rubber, insert |
12620-286-000 |
from US $3.62 |
||
|
4
|
4
12200-392-000
Cylinder head
|
12200-392-000 |
— | ||
|
5
|
5
12211-250-310 ClipVALVE GUIDE |
12211-250-310 |
from US $2.49 |
||
|
6
|
6
12238-300-010
Orifice, oil control
|
12238-300-010 |
— | ||
|
7
|
7
12251-300-306
Gasket, cyl hd
|
12251-300-306 |
— | ||
|
8
|
8
16211-393-020
Insulator 1,carb
|
16211-393-020 |
— | ||
|
9
|
9
16212-393-020
Insulator 2,carb
|
16212-393-020 |
— | ||
|
10
|
10
16213-393-010
Ins.3,carburetor
|
16213-393-010 |
— | ||
|
11
|
11
16214-393-010
Ins.4,carburetor
|
16214-393-010 |
— | ||
|
12
|
12
17255-230-000 Band a, tube |
17255-230-000 |
from US $5.18 |
||
| replacement | |||||
|
12
|
12
9501846250 Band, air cleaner connecting tube (46) |
9501846250 |
from US $3.26 |
||
|
13
|
13
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
14
|
14
90055-300-000
Bolt,stud,6x58
|
90055-300-000 |
— | ||
|
16
|
16
90485-035-000 Washer, 14m/m |
90485-035-000 |
from US $2.03 |
||
|
17
|
17
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
17
|
17
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
18
|
18
91318-300-013 Rubber,sealing |
91318-300-013 |
from US $5.33 |
||
|
19
|
19
92700-08050-0E
Bolt
|
92700-08050-0E |
— | ||
| replacement | |||||
|
19
|
19
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
19
|
19
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
20
|
20
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
21
|
21
93500-040-220-A Screw cross 4x22 |
93500-040-220-A |
from US $0.37 |
||
|
21
|
21
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
22
|
22
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
23
|
23
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
24
|
24
95701-0609000 Bolt, flange, 6x90 |
95701-0609000 |
from US $0.89 |
||
