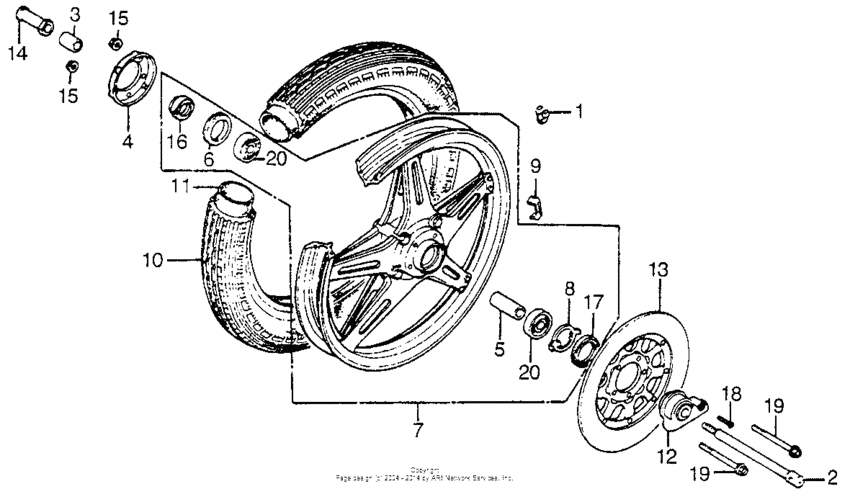

Front wheel 78 Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
44301-425-870
Axle,fr.wheel
|
44301-425-870 |
— | ||
|
3
|
3
44311-425-870
Colr, fr. wheel side
|
44311-425-870 |
— | ||
|
4
|
4
44607-393-780
Cover, fr. wheel
|
44607-393-780 |
— | ||
|
5
|
5
44620-410-000
Collar, fr
|
44620-410-000 |
— | ||
|
6
|
6
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
7
|
7
44660-410-670
Wheel sub, fr.
|
44660-410-670 |
— | ||
|
8
|
8
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
9
|
9
44703-410-003
Mark,spoke plate
|
44703-410-003 |
— | ||
|
10
|
10
44711-371-671 Tire350h194s21fam |
44711-371-671 |
US $66.57 |
||
|
11
|
11
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
11
|
11
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
11
|
11
44712-371-003
Tube325/350-19tr6
|
44712-371-003 |
— | ||
|
11
|
11
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
12
|
12
44800-425-013
Box,s/meter gear
|
44800-425-013 |
— | ||
|
13
|
13
45120-393-780
Disk, fr. brake
|
45120-393-780 |
— | ||
|
14
|
14
90306-425-870
Nut,axle,12mm
|
90306-425-870 |
— | ||
|
15
|
15
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
16
|
16
91252-300-003 Dust,seal |
91252-300-003 |
from US $10.06 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
18
|
18
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
19
|
19
95300-081-000-0 Bolt,hex.,8x100 |
95300-081-000-0 |
US $1.04 |
||
|
20
|
20
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
