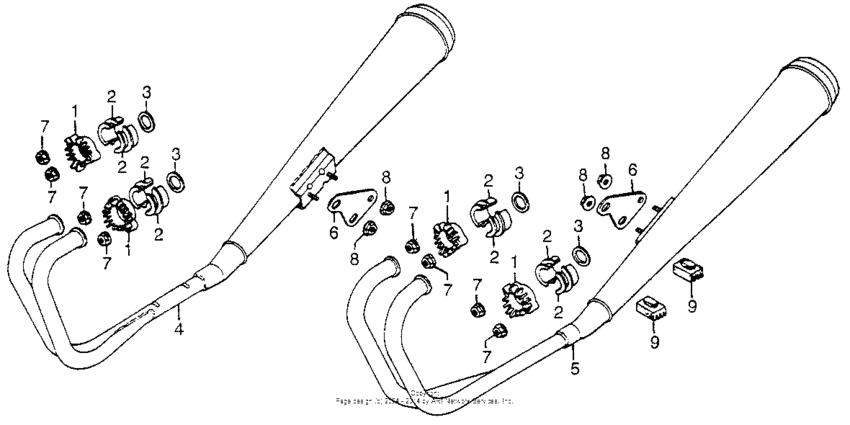

Muffler Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-392-000
Joint,ex.pipe
|
18231-392-000 |
— | ||
|
2
|
2
18233-392-000 Collar,ex.pipe |
18233-392-000 |
US $17.14 |
||
|
3
|
3
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
4
|
4
18300-393-777
Muffler comp.,ex.
|
18300-393-777 |
— | ||
|
5
|
5
18310-393-773
Muffler assy.,l.
|
18310-393-773 |
— | ||
|
6
|
6
18312-393-770
Bracket, muffler
|
18312-393-770 |
— | ||
|
7
|
7
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
8
|
8
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
9
|
9
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
