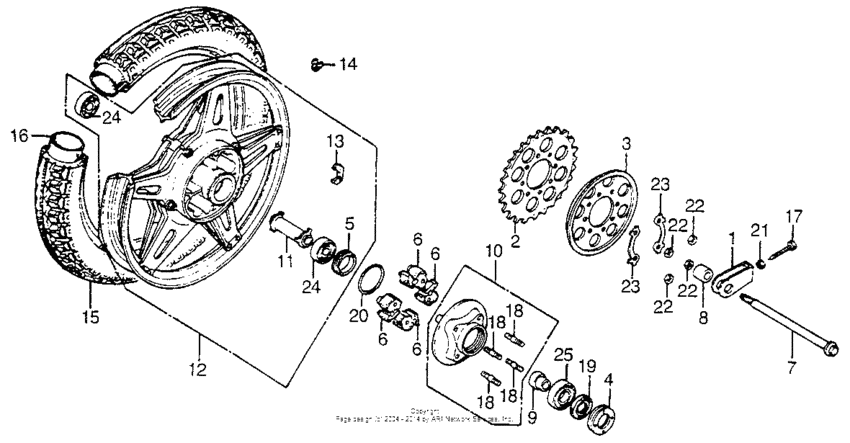

Rear wheel 78 Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-392-000
Adjuster,chain
|
40543-392-000 |
— | ||
|
2
|
2
41201-393-770
Sprocket,driven
|
41201-393-770 |
— | ||
|
3
|
3
41211-405-000
Plate,sprkt.side
|
41211-405-000 |
— | ||
|
4
|
4
41231-283-000 Retainer, bearing |
41231-283-000 |
US $50.32 |
||
|
5
|
5
41231-300-020 Retainer rr wheel |
41231-300-020 |
US $35.50 |
||
|
6
|
6
41241-300-050 Damper,rr.wheel |
41241-300-050 |
from US $16.43 |
||
|
7
|
7
42301-425-870
Axle,rr.wheel
|
42301-425-870 |
— | ||
|
8
|
8
42311-392-000
Coller,rr.wheel
|
42311-392-000 |
— | ||
| replacement | |||||
|
8
|
8
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
9
|
9
42605-393-000
Sleeve, rr. axle
|
42605-393-000 |
— | ||
|
10
|
10
42610-405-000
Flange,driven
|
42610-405-000 |
— | ||
|
11
|
11
42620-ME1-405
Collar, rr. distance
|
42620-ME1-405 |
— | ||
|
12
|
12
42660-393-780
Wheel sub-assy., rr.
|
42660-393-780 |
— | ||
|
13
|
13
42703-410-003
Mark,rr.spoke pl.
|
42703-410-003 |
— | ||
|
14
|
14
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
14
|
14
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
15
|
15
42711-393-781 Tire, rr. (4.50h-17) |
42711-393-781 |
US $71.72 |
||
|
15
|
15
42711-431-661
Tire,rr.wheel
|
42711-431-661 |
— | ||
|
16
|
16
42712-MA0-005 Tube, tire (5.10-17) |
42712-MA0-005 |
US $15.32 |
||
| replacement | |||||
|
16
|
16
42712-MC4-005
Tube, tire (4.60-17)
|
42712-MC4-005 |
— | ||
|
16
|
16
42712-MN9-003
Tube, tire (120/90-17) (bs)
|
42712-MN9-003 |
— | ||
|
17
|
17
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
18
|
18
90128-341-000
Bolt,stud,12x54
|
90128-341-000 |
— | ||
|
19
|
19
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
20
|
20
91258-300-013 D ring, |
91258-300-013 |
from US $7.25 |
||
|
21
|
21
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
22
|
22
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
23
|
23
94108-17000 Washer,a7,tongued |
94108-17000 |
US $0.89 |
||
|
24
|
24
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
25
|
25
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
