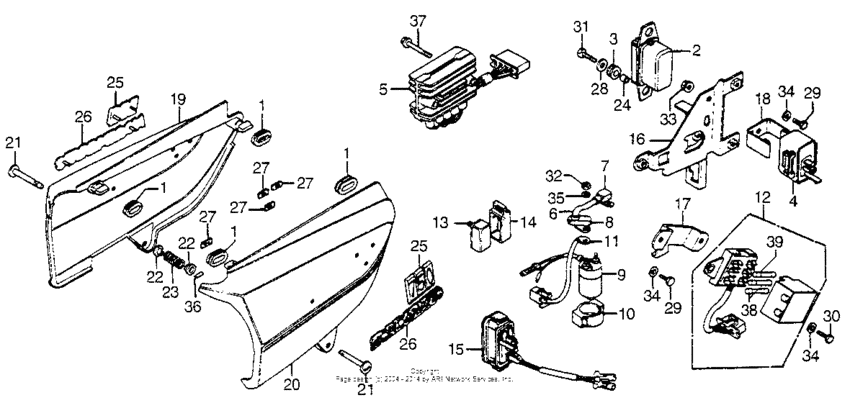

Side cover + electric plate Diagram Honda CB750
- Year
- 1978
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
31400-300-035
Regulator
|
31400-300-035 |
— | ||
|
3
|
3
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
4
|
4
31410-371-007
Regulator assy
|
31410-371-007 |
— | ||
|
5
|
5
31700-371-000
Rectifier Assy
|
31700-371-000 |
— | ||
|
6
|
6
32401-393-000
Cable,starter bat
|
32401-393-000 |
— | ||
|
7
|
7
32412-393-000
Cover a,switch
|
32412-393-000 |
— | ||
|
8
|
8
32413-393-000
Cover b,switch
|
32413-393-000 |
— | ||
|
9
|
9
35850-371-670
Switch, magnetic
|
35850-371-670 |
— | ||
|
10
|
10
35856-323-000
Suspension,switch
|
35856-323-000 |
— | ||
|
11
|
11
35858-393-000
Sub-cord,magnetic
|
35858-393-000 |
— | ||
|
12
|
12
38200-393-772 Box assy.,fuseUse up to Frame SN 7205612 |
38200-393-772 |
US $59.48 |
||
|
13
|
13
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
13
|
13
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
14
|
14
38306-092-670
Suspension,winker
|
38306-092-670 |
— | ||
|
15
|
15
38320-393-771
Relay assy., change
|
38320-393-771 |
— | ||
|
16
|
16
50330-393-770ZA
Plate *nh1*
|
50330-393-770ZA |
— | ||
|
17
|
17
50334-393-770ZA
Plate *nh1*
|
50334-393-770ZA |
— | ||
|
18
|
18
50347-393-000
Plate (7v)
|
50347-393-000 |
— | ||
|
19
|
19
83600-393-770ZB
Cover, r. si *r9cs*
|
83600-393-770ZB |
— | ||
|
19
|
19
83600-393-770ZE
Cvr, r. si *pb100cs*
|
83600-393-770ZE |
— | ||
|
20
|
20
83700-393-770ZB
Cover, l. si *r9cs*
|
83700-393-770ZB |
— | ||
|
20
|
20
83700-393-770ZE
Cvr, l. si *pb100cs*
|
83700-393-770ZE |
— | ||
|
21
|
21
83703-371-000 Pin, side cover |
83703-371-000 |
US $10.88 |
||
|
22
|
22
83704-333-000 Guide,spring |
83704-333-000 |
US $3.70 |
||
|
23
|
23
83705-333-000
Spring,side cover
|
83705-333-000 |
— | ||
|
24
|
24
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
25
|
25
87111-393-770
Emb a,side cover
|
87111-393-770 |
— | ||
|
26
|
26
87113-393-000
Emb.b,side cover
|
87113-393-000 |
— | ||
|
27
|
27
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
28
|
28
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
29
|
29
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
30
|
30
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
31
|
31
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
32
|
32
94002-060-800-S NutHEX., 6MM |
94002-060-800-S |
from US $0.44 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
35
|
35
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
36
|
36
94305-20142 Pin, spring, 2x14 |
94305-20142 |
from US $0.74 |
||
|
37
|
37
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
38
|
38
9820020700 Fuse b (7a) |
9820020700 |
from US $0.59 |
||
|
39
|
39
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
||
