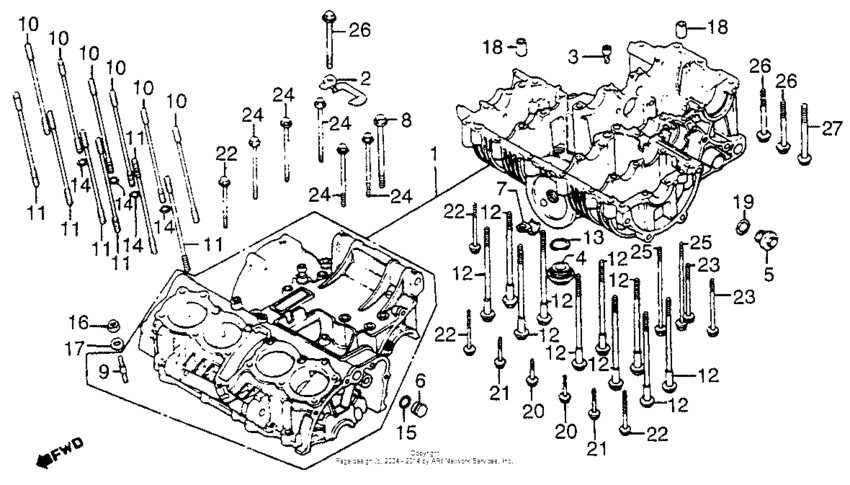

Crankcase Diagram Honda CB750
- Year
- 1980
- Model code
- CB750C A
- Sales region
- USA
- Frame
- RC012200004 - RC012220040
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-425-040
Crankcase set
|
11000-425-040 |
— | ||
|
2
|
2
11618-425-000
Plate, tube guard
|
11618-425-000 |
— | ||
|
3
|
3
11620-425-003
Orifice, oil control
|
11620-425-003 |
— | ||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
5
|
5
15331-300-000 Cap,oil path |
15331-300-000 |
US $19.58 |
||
|
6
|
6
15336-393-000
Plug,oil path
|
15336-393-000 |
— | ||
|
7
|
7
32921-115-000
Clip,hightention
|
32921-115-000 |
— | ||
|
8
|
8
90024-425-000 Bolt,flange 8x83 |
90024-425-000 |
US $5.71 |
||
|
9
|
9
90028-425-000
Bolt,stud,6x34
|
90028-425-000 |
— | ||
|
10
|
10
90031-425-000
Bolt,stud 10x224
|
90031-425-000 |
— | ||
|
11
|
11
90032-425-000
Bolt,stud,10x224
|
90032-425-000 |
— | ||
|
12
|
12
90042-393-000 Bolt,u.b.s,8x118 |
90042-393-000 |
US $10.95 |
||
|
13
|
13
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
15
|
15
91306-329-000 O-ring (16x1.9) |
91306-329-000 |
from US $3.26 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
19
|
19
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
||
|
20
|
20
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
21
|
21
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
22
|
22
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
|
23
|
23
95701-0607000 Bolt, flange, 6x70 |
95701-0607000 |
from US $0.81 |
||
|
24
|
24
95701-0608000 Bolt, flange (6x80) |
95701-0608000 |
from US $0.86 |
||
|
25
|
25
95701-0611000 Bolt, flange, 6x110 |
95701-0611000 |
from US $1.33 |
||
|
26
|
26
95701-0806000 Bolt, flange, 8x60 |
95701-0806000 |
from US $0.81 |
||
|
27
|
27
95723-100-650-0 Bolt,flange,10x65 |
95723-100-650-0 |
US $1.18 |
