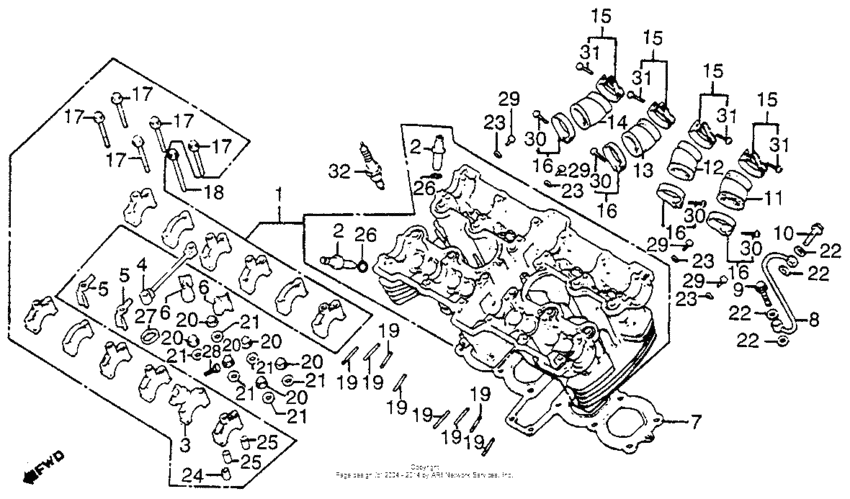

Cylinder head Diagram Honda CB750
- Year
- 1980
- Model code
- CB750C A
- Sales region
- USA
- Frame
- RC012200004 - RC012220040
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
12204-425-305 Superceded |
12204-425-305 |
US $17.60 |
||
| replacement | |||||
|
2
|
2
12204-461-405 Guide, valve |
12204-461-405 |
US $24.51 |
||
|
2
|
2
12204-461-405 Guide, valve |
12204-461-405 |
US $24.51 |
||
|
3
|
3
12213-425-305
Holder, camshaft
|
12213-425-305 |
— | ||
|
4
|
4
12230-425-000
Joint a, oil passage
|
12230-425-000 |
— | ||
|
5
|
5
12241-425-000
Plate, oil stopper
|
12241-425-000 |
— | ||
|
6
|
6
12242-425-000 Cap, oil stopper |
12242-425-000 |
US $11.56 |
||
|
7
|
7
12251-438-023 Gasket, cyl hd |
12251-438-023 |
US $110.16 |
||
|
8
|
8
15520-425-003
Pipe comp.,oil
|
15520-425-003 |
— | ||
|
9
|
9
15531-425-010
Bolt,oil control
|
15531-425-010 |
— | ||
|
10
|
10
15532-425-010
Bolt,oil
|
15532-425-010 |
— | ||
|
11
|
11
16211-425-000 Ins 1,carburetor |
16211-425-000 |
from US $40.80 |
||
|
12
|
12
16212-425-000 Ins 2,carburetor |
16212-425-000 |
from US $40.80 |
||
|
13
|
13
16213-425-000 Ins 3,carburetor |
16213-425-000 |
from US $40.80 |
||
|
14
|
14
16214-425-000 Ins 4,carburetor |
16214-425-000 |
from US $40.80 |
||
|
15
|
15
16219-422-000 Band, insulator |
16219-422-000 |
from US $8.73 |
||
|
16
|
16
9501854250 Band, air cleaner connecting tube (54) |
9501854250 |
from US $3.26 |
||
|
17
|
17
90018-425-000 Bolt, flange (6x48) |
90018-425-000 |
from US $3.03 |
||
|
18
|
18
90004-ML7-000
Bolt flange,6x60
|
90004-ML7-000 |
— | ||
|
19
|
19
90035-425-000
Bolt,stud,8x55
|
90035-425-000 |
— | ||
|
20
|
20
90202-329-000 Nut (10mm) |
90202-329-000 |
from US $3.48 |
||
|
21
|
21
90403-438-003 Washer,seal.10mm |
90403-438-003 |
from US $5.92 |
||
|
22
|
22
90441-425-000 Washer (10mm) |
90441-425-000 |
from US $1.80 |
||
|
23
|
23
90452-323-000 Washer, sealing, 5mm |
90452-323-000 |
from US $2.22 |
||
|
24
|
24
90701-425-000
Pin,dowel,8x26
|
90701-425-000 |
— | ||
|
25
|
25
90705-639-000 Pin dowel 8x20.5 |
90705-639-000 |
from US $4.34 |
||
|
26
|
26
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
27
|
27
91311-425-000 O-ring,c/shaft ho |
91311-425-000 |
from US $6.81 |
||
|
28
|
28
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
29
|
29
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
30
|
30
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
31
|
31
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
32
|
32
98069-57717 Plug,spark |
98069-57717 |
from US $3.57 |
||
|
32
|
32
98069-57727 Plug,spark (x22es |
98069-57727 |
from US $2.28 |
||
|
32
|
32
98069-58717 Plug,spark |
98069-58717 |
US $3.57 |
||
|
32
|
32
98069-58727 Plug,spark |
98069-58727 |
from US $3.21 |
||
|
32
|
32
98069-59717 Plug,(d9ea ngk) |
98069-59717 |
from US $3.81 |
||
|
32
|
32
98069-59727 Plug(x27es-u) |
98069-59727 |
US $6.66 |
||
