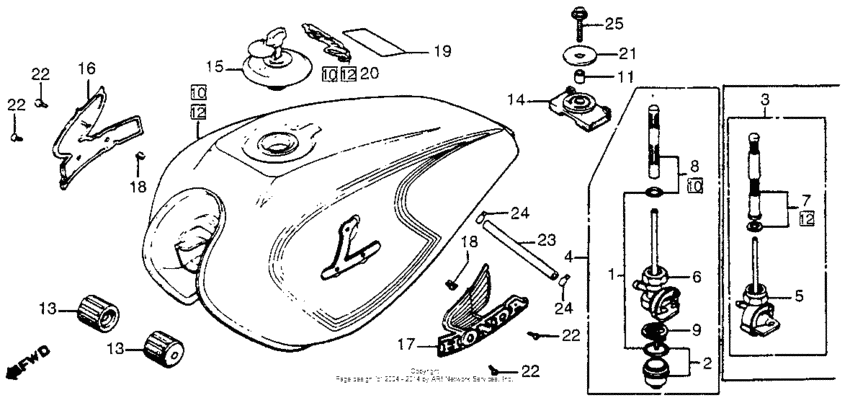

Fuel tank Diagram Honda CB750
- Year
- 1980
- Model code
- CB750C A
- Sales region
- USA
- Frame
- RC012200004 - RC012220040
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
17503-329-770
Collar,fuel tank
|
17503-329-770 |
— | ||
|
13
|
13
17611-425-000 Rubber, fr |
17611-425-000 |
from US $4.88 |
||
|
14
|
14
17613-MA5-771 Cushion,fuel tank |
17613-MA5-771 |
from US $12.14 |
||
|
15
|
15
17620-460-067 Cap,fuel filler |
17620-460-067 |
from US $53.18 |
||
|
16
|
16
87121-461-000
Emb,r.fuel tank
|
87121-461-000 |
— | ||
|
17
|
17
87122-461-000
Emb.,l.fuel tank
|
87122-461-000 |
— | ||
|
18
|
18
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
18
|
18
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
18
|
18
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
21
|
21
90502-461-000 Washer,8.3x38 |
90502-461-000 |
from US $3.74 |
||
|
22
|
22
93500-040-060-G ScrewPAN, 4X6 |
93500-040-060-G |
from US $0.37 |
||
|
25
|
25
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
