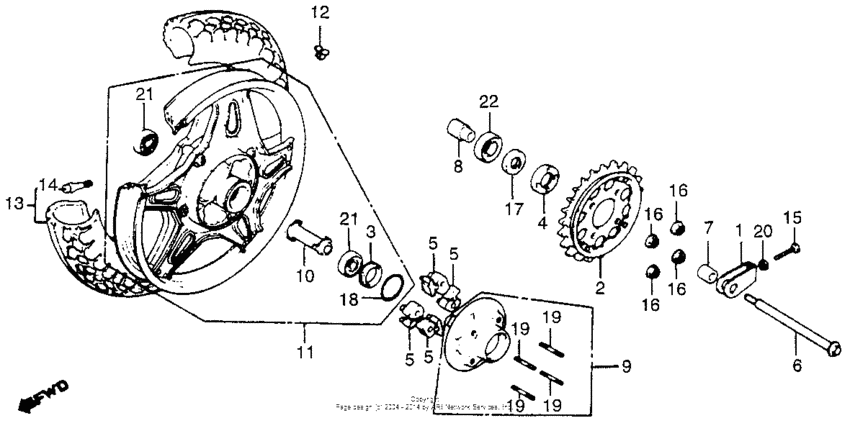

Rear wheel Diagram Honda CB750
- Year
- 1980
- Model code
- CB750C A
- Sales region
- USA
- Frame
- RC012200004 - RC012220040
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-425-000
Adjr,drive chain
|
40543-425-000 |
— | ||
|
2
|
2
41200-425-641
Sprkt,final drive
|
41200-425-641 |
— | ||
|
3
|
3
41231-300-020 Retainer rr wheel |
41231-300-020 |
US $35.50 |
||
|
4
|
4
41231-422-000
Ret,rr.wheel brg.
|
41231-422-000 |
— | ||
|
5
|
5
41241-300-050 Damper,rr.wheel |
41241-300-050 |
from US $16.43 |
||
|
6
|
6
42301-425-870
Axle,rr.wheel
|
42301-425-870 |
— | ||
|
7
|
7
42311-392-000
Coller,rr.wheel
|
42311-392-000 |
— | ||
| replacement | |||||
|
7
|
7
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
8
|
8
42605-393-000
Sleeve, rr. axle
|
42605-393-000 |
— | ||
|
9
|
9
42610-425-870
Flange, final driven
|
42610-425-870 |
— | ||
|
10
|
10
42620-ME1-405
Collar, rr. distance
|
42620-ME1-405 |
— | ||
|
11
|
11
42650-460-670
Wheel comp.,rr.
|
42650-460-670 |
— | ||
|
12
|
12
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
12
|
12
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
14
|
14
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
15
|
15
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
16
|
16
90309-375-003 Nut, flange (12mm) |
90309-375-003 |
from US $7.40 |
||
|
17
|
17
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
18
|
18
91258-300-013 D ring, |
91258-300-013 |
from US $7.25 |
||
|
19
|
19
92716-12055-0E
Bolt,stud,12x55
|
92716-12055-0E |
— | ||
|
20
|
20
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
21
|
21
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
22
|
22
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
