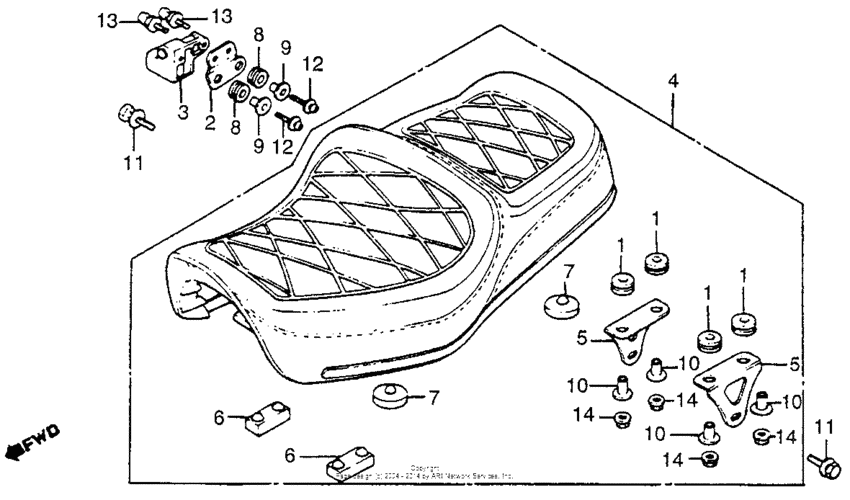

Seat Diagram Honda CB750
- Year
- 1980
- Model code
- CB750C A
- Sales region
- USA
- Frame
- RC012200004 - RC012220040
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
50709-425-730
Brkt, helmet holder
|
50709-425-730 |
— | ||
|
3
|
3
50710-086-007 Holder assy., helmet |
50710-086-007 |
from US $24.77 |
||
|
5
|
5
77202-425-870
Pl,seat setting
|
77202-425-870 |
— | ||
|
6
|
6
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
7
|
7
77206-425-000
Cushion
|
77206-425-000 |
— | ||
|
8
|
8
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
9
|
9
84706-163-670 Collar, taillight mounting |
84706-163-670 |
from US $4 |
||
|
10
|
10
90501-425-000 Collar6.2X12 |
90501-425-000 |
from US $3.70 |
||
|
11
|
11
93401-080-120-7 Bolt-washer8X12 |
93401-080-120-7 |
from US $0.67 |
||
|
12
|
12
93891-060-180-7 Screw-washer,6x18 |
93891-060-180-7 |
US $0.52 |
||
|
13
|
13
93893-060-160-7 Screw-washer6X16 |
93893-060-160-7 |
from US $0.59 |
