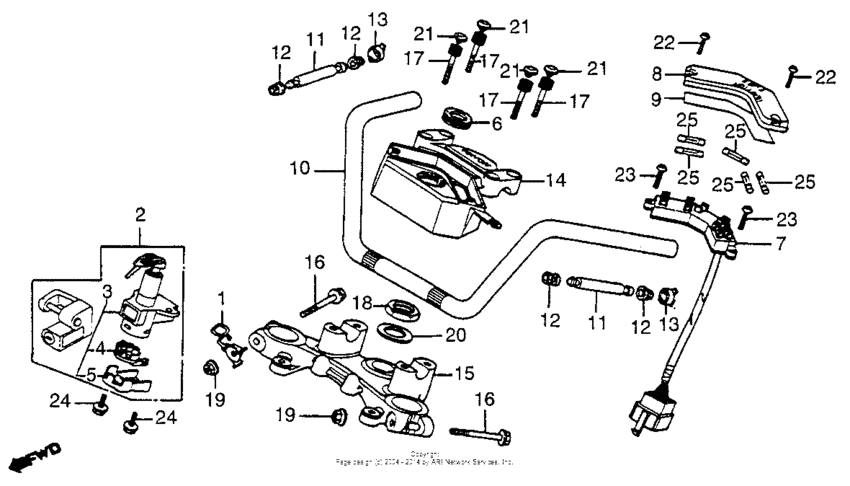

Handlebar + top bridge Diagram Honda CB750
- Year
- 1982
- Model code
- CB750C A
- Sales region
- USA
- Frame
- JH2RC011*CM200003 - JH2RC011*CM206708
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17908-449-000
Guide,cable
|
17908-449-000 |
— | ||
|
2
|
2
35010-460-030
Key set
|
35010-460-030 |
— | ||
|
3
|
3
35100-422-017
Switch assy
|
35100-422-017 |
— | ||
|
4
|
4
35101-422-007
Base comp,contact
|
35101-422-007 |
— | ||
|
5
|
5
35102-431-007 Cover,switch |
35102-431-007 |
US $5.48 |
||
|
6
|
6
37623-415-000
Rubber,ig.sw set
|
37623-415-000 |
— | ||
|
7
|
7
38200-461-771
Plate assy.,fuse
|
38200-461-771 |
— | ||
|
8
|
8
38210-461-000
Cover,fuse plate
|
38210-461-000 |
— | ||
|
9
|
9
38215-MA5-670
Label,fuse
|
38215-MA5-670 |
— | ||
|
10
|
10
53100-425-730
Pipe,strg.handle
|
53100-425-730 |
— | ||
|
11
|
11
53106-415-000 Weight,handle |
53106-415-000 |
from US $16.88 |
||
|
12
|
12
53107-425-000
Rubber
|
53107-425-000 |
— | ||
|
13
|
13
53108-MK4-000 Ring |
53108-MK4-000 |
from US $5.62 |
||
|
14
|
14
53131-461-770
Holder,hndl up
|
53131-461-770 |
— | ||
|
15
|
15
53230-MA5-670 Bridge,fork top |
53230-MA5-670 |
US $229.20 |
||
|
16
|
16
90155-428-000
Bolt flg 7x59
|
90155-428-000 |
— | ||
|
17
|
17
90185-371-000 Bolt (8x32) |
90185-371-000 |
from US $4.62 |
||
|
18
|
18
90304-425-000 Nut, steering stem |
90304-425-000 |
from US $9.92 |
||
|
19
|
19
90360-425-870 Nut,cap,7mm |
90360-425-870 |
US $11.41 |
||
|
20
|
20
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
21
|
21
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
22
|
22
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
23
|
23
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
24
|
24
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
25
|
25
98200-21500 Fuse b15A |
98200-21500 |
from US $0.59 |
