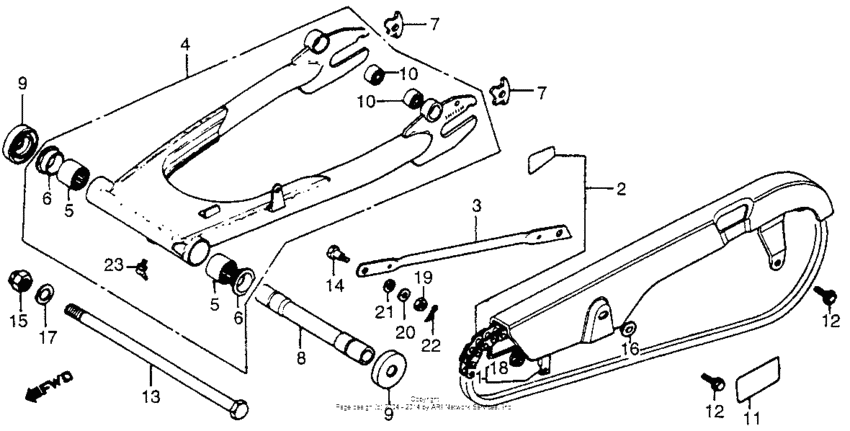

Swingarm + chain case Diagram Honda CB750
- Year
- 1982
- Model code
- CB750C A
- Sales region
- USA
- Frame
- JH2RC011*CM200003 - JH2RC011*CM206708
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-425-871
Case,drive chain
|
40510-425-871 |
— | ||
|
2
|
2
40535-425-644
Chain set, drive
|
40535-425-644 |
— | ||
|
3
|
3
43431-425-730
Arm,rr.brake stpr
|
43431-425-730 |
— | ||
|
4
|
4
52100-425-830ZB
Fork,rr.*nh-1*
|
52100-425-830ZB |
— | ||
|
5
|
5
52108-425-831
Needle brg
|
52108-425-831 |
— | ||
|
5
|
5
52108-425-832
Needle brg
|
52108-425-832 |
— | ||
|
6
|
6
52109-425-831
Bush,thrust
|
52109-425-831 |
— | ||
|
7
|
7
52136-ME1-670
Stopper,chain adj
|
52136-ME1-670 |
— | ||
|
8
|
8
52141-425-830
Collar,rr.fork
|
52141-425-830 |
— | ||
|
9
|
9
52144-425-831
Cap,dust seal
|
52144-425-831 |
— | ||
|
10
|
10
52451-357-000 Bush,rear damper |
52451-357-000 |
US $15.78 |
||
|
11
|
11
87505-MA5-770
Mark, tire caution
|
87505-MA5-770 |
— | ||
|
12
|
12
90014-460-000 Bolt, flange (6x8) |
90014-460-000 |
US $2.79 |
||
|
13
|
13
90121-425-830
Bolt,rr.forkpivot
|
90121-425-830 |
— | ||
|
14
|
14
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
15
|
15
90354-425-830
Nut,self lock16mm
|
90354-425-830 |
— | ||
|
16
|
16
90513-405-000 Washer, 6x9 |
90513-405-000 |
from US $2.44 |
||
|
17
|
17
90600-425-830
Washer, plain, 16mm
|
90600-425-830 |
— | ||
|
18
|
18
90854-SA0-680
Grommet
|
90854-SA0-680 |
— | ||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
21
|
21
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
22
|
22
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
22
|
22
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
22
|
22
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
23
|
23
9620160000 Fitting (c.76) |
9620160000 |
from US $1.85 |
||
