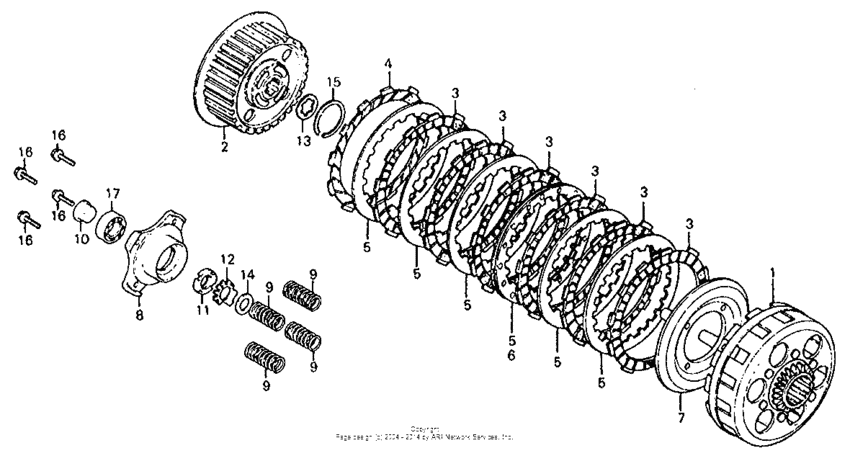

Clutch Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-392-000
Outer,clutch
Use up to Engine SN 2558988 |
22100-392-000 |
— | ||
|
1
|
1
22100-392-010
Outer comp.,clch.
Use from Engine SN 2558989 |
22100-392-010 |
— | ||
|
2
|
2
22120-300-040
Center,clutch
Use up to Engine SN 2558988 |
22120-300-040 |
— | ||
|
2
|
2
22120-300-050
Center,clutch
Use from Engine SN 2558989 |
22120-300-050 |
— | ||
|
3
|
3
22201-371-000 Disk,a.friction |
22201-371-000 |
from US $26.28 |
||
|
4
|
4
22202-392-000 Disk b,cluh. |
22202-392-000 |
from US $20.56 |
||
|
5
|
5
22321-MG8-000 Plate, clutchUse up to Engine SN 2558988 |
22321-MG8-000 |
from US $6.62 |
||
|
5
|
5
22321-283-000
Plate b, clutch
Use up to Engine SN 2558988 |
22321-283-000 |
— | ||
| replacement | |||||
|
5
|
5
22321-MG8-000 Plate, clutchUse up to Engine SN 2558988 |
22321-MG8-000 |
from US $6.62 |
||
|
6
|
6
22322-371-020
Plate b,cluch
Use from Engine SN 2558989 |
22322-371-020 |
— | ||
|
7
|
7
22350-300-030
Plate,clutch
|
22350-300-030 |
— | ||
|
8
|
8
22360-300-010 Plate,lifter |
22360-300-010 |
US $74.80 |
||
|
9
|
9
22401-323-003 Spring,clutch |
22401-323-003 |
from US $9.74 |
||
|
10
|
10
22846-300-010
Piece,clch.lifter
Use up to Engine SN 2558988 |
22846-300-010 |
— | ||
|
11
|
11
90231-KCS-651 Nut, lock (16mm) |
90231-KCS-651 |
from US $4.74 |
||
|
11
|
11
90231-200-010 Nut, lock, 16mm |
90231-200-010 |
from US $3.64 |
||
| replacement | |||||
|
11
|
11
90231-KCS-651 Nut, lock (16mm) |
90231-KCS-651 |
from US $4.74 |
||
|
12
|
12
90431-292-000 Washer,lock 16m/m |
90431-292-000 |
from US $3.89 |
||
|
13
|
13
90432-392-000
Washer,spline25mm
|
90432-392-000 |
— | ||
|
14
|
14
90481-292-000
Washer,filterlock
|
90481-292-000 |
— | ||
|
15
|
15
90602-371-000
Circlip (40mm)
|
90602-371-000 |
— | ||
|
16
|
16
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
17
|
17
96100-600-300-0 Bearing, radial ball, 6003 |
96100-600-300-0 |
from US $6.43 |
||
