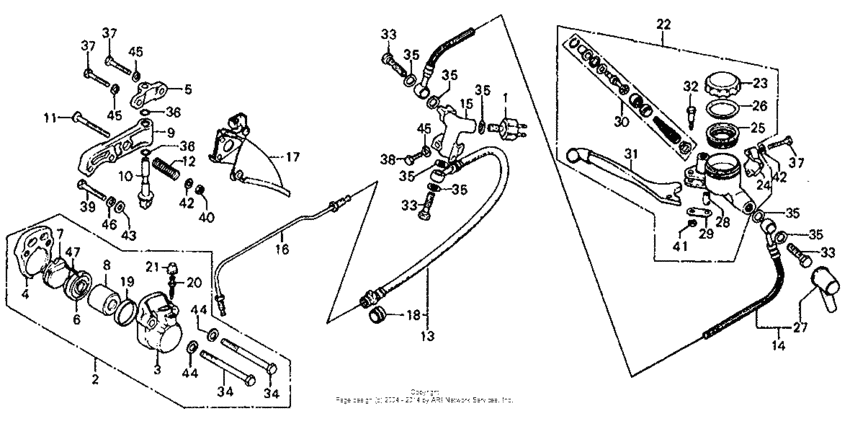

Front master cylinder + front brake caliper Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-390-405
Pad, set brake
|
06455-390-405 |
— | ||
|
1
|
1
35350-300-016
Switch,stop
|
35350-300-016 |
— | ||
|
2
|
2
45100-392-003 Caliper assy |
45100-392-003 |
US $763.66 |
||
|
3
|
3
45101-392-003
Caliper a
|
45101-392-003 |
— | ||
|
4
|
4
45102-392-003
Caliper b
|
45102-392-003 |
— | ||
|
5
|
5
45104-317-700
Joint,caliper
|
45104-317-700 |
— | ||
|
6
|
6
45105-390-305 Pad comp, a(niss) |
45105-390-305 |
US $55.35 |
||
|
7
|
7
45106-390-305 Pad,comp,b |
45106-390-305 |
US $55.35 |
||
|
8
|
8
45107-392-003
Piston comp
|
45107-392-003 |
— | ||
|
9
|
9
45115-392-003
Holder,caliper
|
45115-392-003 |
— | ||
|
10
|
10
45116-367-690
Pin,caliper
|
45116-367-690 |
— | ||
|
11
|
11
45117-341-700 Bolt,caliper adj.Use up to Frame SN 2021927 |
45117-341-700 |
from US $9.27 |
||
|
12
|
12
45119-300-020 Spring caliper |
45119-300-020 |
from US $8.23 |
||
|
13
|
13
45125-379-003
Hose a,fr.brake
|
45125-379-003 |
— | ||
|
14
|
14
45126-341-003
Hose b,fr. brake
|
45126-341-003 |
— | ||
|
15
|
15
45127-323-000
Joint,three way
|
45127-323-000 |
— | ||
|
16
|
16
45128-323-020 Pipe,front brake |
45128-323-020 |
from US $17.14 |
||
|
17
|
17
45140-341-670 Cover,disk |
45140-341-670 |
US $32.88 |
||
|
18
|
18
45146-300-000 Grommet, brake hose |
45146-300-000 |
from US $4.88 |
||
|
19
|
19
45215-533-004 Seal, dust |
45215-533-004 |
from US $18.36 |
||
|
20
|
20
45224-579-013 Valve,bleeder |
45224-579-013 |
from US $11.54 |
||
|
21
|
21
45225-579-013 Cap |
45225-579-013 |
from US $2.59 |
||
|
22
|
22
45500-341-771
Cylinder,master
|
45500-341-771 |
— | ||
|
23
|
23
43513-MJ6-006 Cap,oil cup |
43513-MJ6-006 |
US $22.03 |
||
|
24
|
24
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
24
|
24
45517-300-003
Holder master
|
45517-300-003 |
— | ||
| replacement | |||||
|
24
|
24
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
25
|
25
45520-300-000 Diaphragm |
45520-300-000 |
from US $7.99 |
||
|
26
|
26
45521-MJ6-006 Plate, diaphragm |
45521-MJ6-006 |
from US $4.22 |
||
|
27
|
27
45522-300-010 Boot |
45522-300-010 |
from US $6.12 |
||
|
28
|
28
45526-341-000 Bush,r handle |
45526-341-000 |
US $6.66 |
||
|
29
|
29
45527-300-000 Plate,lever.bush |
45527-300-000 |
US $6.66 |
||
|
30
|
30
45530-377-305 Cylinder set,mast |
45530-377-305 |
from US $31.52 |
||
|
31
|
31
53175-369-003 Lever,r.steering |
53175-369-003 |
US $41.41 |
||
|
32
|
32
90114-300-000 Bolt,handle lever |
90114-300-000 |
from US $10.20 |
||
|
33
|
33
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
34
|
34
90165-323-000 Bolt,caliper |
90165-323-000 |
from US $10.36 |
||
|
35
|
35
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
36
|
36
91259-333-000 O-ring (9.5x1.7) |
91259-333-000 |
from US $4.29 |
||
|
37
|
37
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
38
|
38
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
39
|
39
92201-08035-0A Bolt, hex., 8x35 |
92201-08035-0A |
from US $0.59 |
||
|
40
|
40
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
41
|
41
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
42
|
42
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
43
|
43
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
44
|
44
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
45
|
45
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
46
|
46
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
47
|
47
94201-16220 Pin cotter 1.6mm |
94201-16220 |
from US $0.44 |
||
