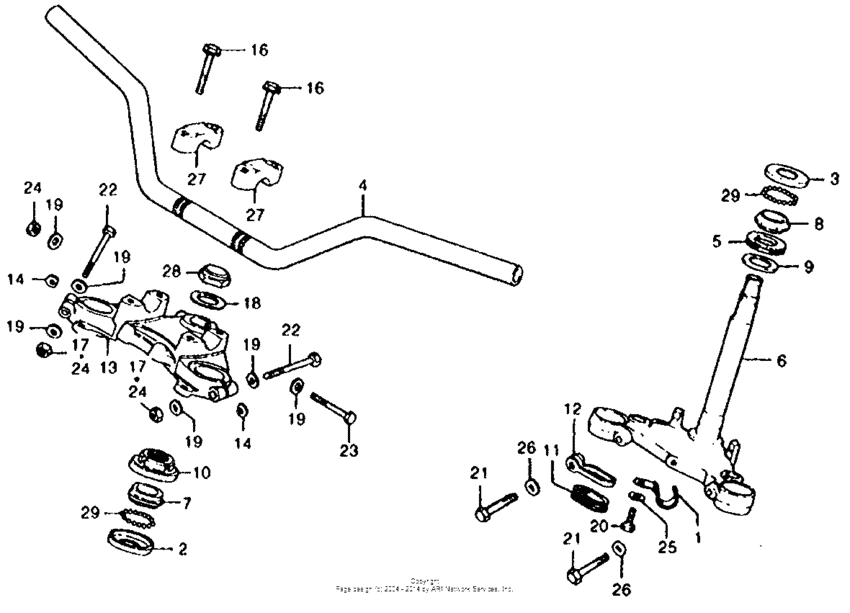

Handlebar + top bridge Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32123-390-000
Clip,wire harness
|
32123-390-000 |
— | ||
|
2
|
2
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
3
|
3
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
4
|
4
53100-341-700
Pipe,strg.handle
|
53100-341-700 |
— | ||
|
5
|
5
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
5
|
5
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
5
|
5
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
6
|
6
53200-392-000ZA
Stem,strg.*nh-1*
|
53200-392-000ZA |
— | ||
|
7
|
7
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
8
|
8
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
9
|
9
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
10
|
10
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
11
|
11
53225-333-000
Inner,cable guide
|
53225-333-000 |
— | ||
|
12
|
12
53226-341-700
Bracket,cable
|
53226-341-700 |
— | ||
|
13
|
13
53230-392-305
Bridge,fork top
Use up to Frame SN 2009780 |
53230-392-305 |
— | ||
|
13
|
13
53230-392-010
Bridge,fork top
Use from Frame SN 2009781 |
53230-392-010 |
— | ||
|
14
|
14
53235-300-000 Washer spacerUse up to Frame SN 2009780 |
53235-300-000 |
US $10.36 |
||
|
16
|
16
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
17
|
17
90355-369-000 Nut, flange, 7mmUse from Frame SN 2009781 |
90355-369-000 |
from US $5.33 |
||
|
18
|
18
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
19
|
19
90518-921-000 Washer, plain, 8mmUse up to Frame SN 2009780 |
90518-921-000 |
from US $0.95 |
||
|
20
|
20
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
21
|
21
92101-10040-0A Bolt, hex. (10x40)Use up to Frame SN 2021927 |
92101-10040-0A |
from US $0.74 |
||
|
21
|
21
95701-1004000 Bolt, flange, 10x40Use from Frame SN 2021928 |
95701-1004000 |
from US $0.81 |
||
|
22
|
22
93101-080-560-B
Bolt, hex. (8x56)
Use up to Frame SN 2009780 |
93101-080-560-B |
— | ||
|
22
|
22
90155-369-000 Bolt,flange,7x54Use from Frame SN 2009781 |
90155-369-000 |
from US $6.81 |
||
|
23
|
23
93101-080-740-B
Bolt, hex. (8x74)
|
93101-080-740-B |
— | ||
|
24
|
24
94001-080-200-S Nut,hex 8m/mUse up to Frame SN 2009780 |
94001-080-200-S |
from US $0.52 |
||
|
25
|
25
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
26
|
26
9410210000 Washer, plain, 10mmUse up to Frame SN 2021927 |
9410210000 |
from US $0.44 |
||
|
27
|
27
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
28
|
28
90304-415-000 Nut, steering stem |
90304-415-000 |
from US $12.58 |
||
|
29
|
29
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
