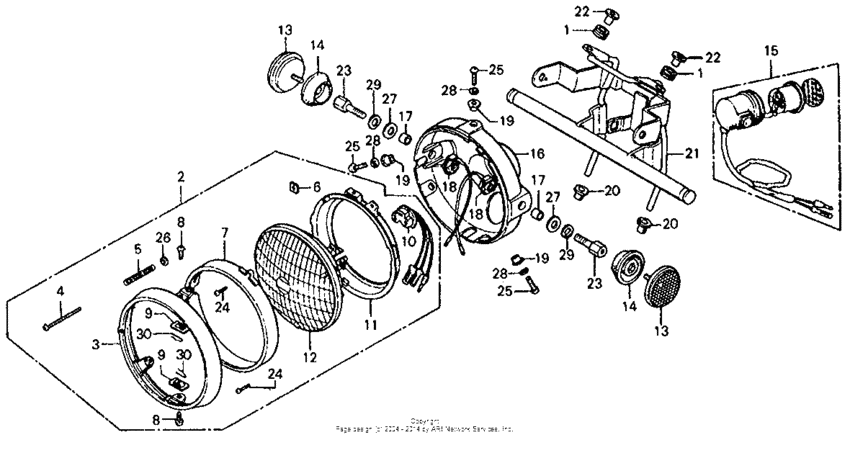

Headlight Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
33100-371-672
Light assy.,head
|
33100-371-672 |
— | ||
|
3
|
3
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
4
|
4
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
4
|
4
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
5
|
5
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
6
|
6
33117-001-003
Nut, adjusting
|
33117-001-003 |
— | ||
|
7
|
7
33121-375-671
Ring,retaining
|
33121-375-671 |
— | ||
|
8
|
8
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
9
|
9
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
10
|
10
33130-300-003
Socket,head lt.
|
33130-300-003 |
— | ||
|
11
|
11
33153-375-671
Ring, setting
|
33153-375-671 |
— | ||
|
12
|
12
33120-431-505
Set unit,head lig
|
33120-431-505 |
— | ||
|
13
|
13
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
13
|
13
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
14
|
14
33743-375-000 Base,fr reflector |
33743-375-000 |
US $10.79 |
||
|
15
|
15
38400-341-674
Buzzer,winker
|
38400-341-674 |
— | ||
|
16
|
16
61301-375-003-B
Case,head light
|
61301-375-003-B |
— | ||
|
17
|
17
61302-300-000 Collar,light case |
61302-300-000 |
US $6.66 |
||
|
18
|
18
61303-336-000 Washer,light case |
61303-336-000 |
US $13.47 |
||
|
19
|
19
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
20
|
20
61312-392-000
Grommet,light
|
61312-392-000 |
— | ||
|
21
|
21
61313-392-000
Stay, head light
|
61313-392-000 |
— | ||
|
22
|
22
80106-329-690
Collar c,6.3 mtg.
|
80106-329-690 |
— | ||
|
23
|
23
90120-377-000
Bolt,headlightsty
|
90120-377-000 |
— | ||
|
24
|
24
93500-030-123-B
Screw,pan,3x12
|
93500-030-123-B |
— | ||
|
25
|
25
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
26
|
26
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
27
|
27
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
||
|
28
|
28
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
29
|
29
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
30
|
30
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
||
