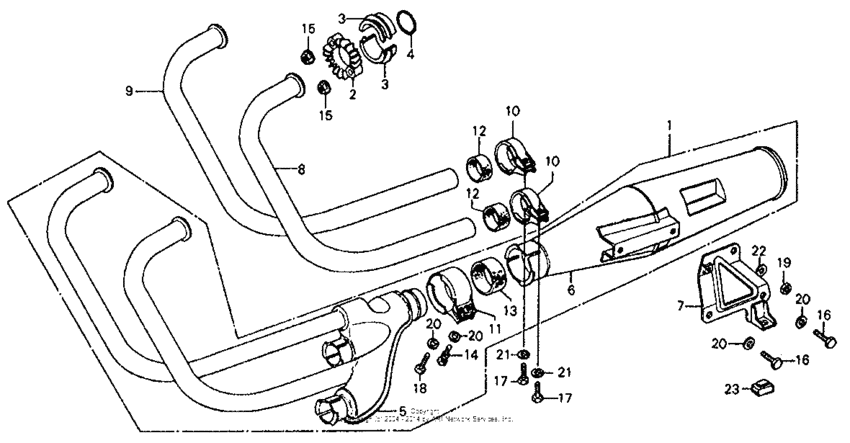

Muffler Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18200-392-000
Muffler assy.
|
18200-392-000 |
— | ||
|
2
|
2
18231-392-000
Joint,ex.pipe
|
18231-392-000 |
— | ||
|
3
|
3
18233-392-000 Collar,ex.pipe |
18233-392-000 |
US $17.14 |
||
|
4
|
4
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
5
|
5
18300-392-000
Pipe,exhaust
|
18300-392-000 |
— | ||
|
6
|
6
18310-392-000
Muffler comp.
|
18310-392-000 |
— | ||
|
7
|
7
18312-392-000
Bracket, muffler
|
18312-392-000 |
— | ||
|
8
|
8
18331-392-000
Pipe comp.1,ex.
|
18331-392-000 |
— | ||
|
9
|
9
18361-392-000
Pipe comp.3,ex.
|
18361-392-000 |
— | ||
|
10
|
10
18371-392-000
Band,exhaust pipe
|
18371-392-000 |
— | ||
|
11
|
11
18372-392-000
Band,muffler,63.5
|
18372-392-000 |
— | ||
|
12
|
12
18391-MN5-650 Gasket, muffler |
18391-MN5-650 |
from US $14.14 |
||
|
13
|
13
18391-392-306
Gasket, muffler
|
18391-392-306 |
— | ||
|
14
|
14
90105-390-000
Bolt,muffler set
|
90105-390-000 |
— | ||
|
15
|
15
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
16
|
16
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
17
|
17
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
18
|
18
92101-08032-0B Bolt, hex. (8x32) |
92101-08032-0B |
from US $0.90 |
||
|
19
|
19
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
20
|
20
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
21
|
21
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
22
|
22
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
23
|
23
95011-64000 Rubber d,stand |
95011-64000 |
from US $1.33 |
