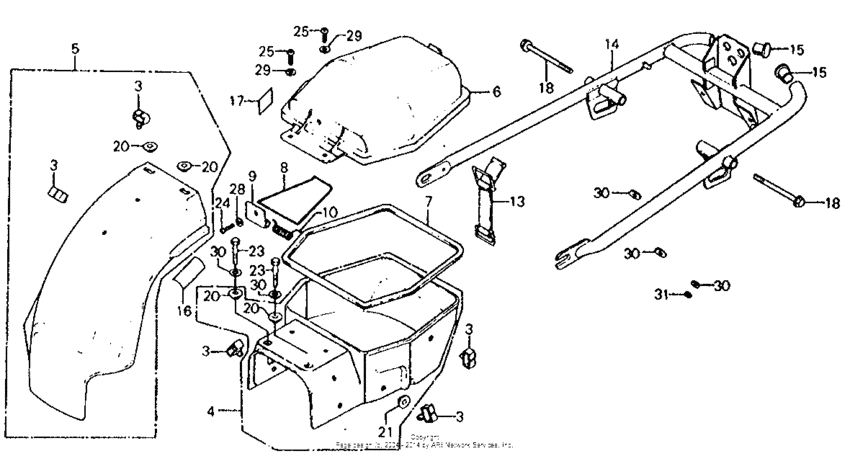

Rear fender + bumper Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
4
|
4
80100-392-670
Fender a,rear
|
80100-392-670 |
— | ||
|
5
|
5
80105-341-010
Fender b, rear
Use up to Frame SN 2021927 |
80105-341-010 |
— | ||
|
6
|
6
80110-392-000
Cap a,rr.fender
|
80110-392-000 |
— | ||
|
7
|
7
80111-392-000
Rubber,rr.fender
|
80111-392-000 |
— | ||
|
8
|
8
80112-392-000
Bar,clamp
|
80112-392-000 |
— | ||
|
9
|
9
80113-392-000
Base,clamp
|
80113-392-000 |
— | ||
|
10
|
10
80114-392-000
Spring,return
|
80114-392-000 |
— | ||
|
13
|
13
83606-356-000 Band, side cover |
83606-356-000 |
from US $17.20 |
||
|
14
|
14
84101-392-000
Bumper,rear
|
84101-392-000 |
— | ||
|
15
|
15
84103-392-000 Cap, rr. bumper |
84103-392-000 |
from US $4.29 |
||
|
16
|
16
87506-392-670
Mark,bat.caution
|
87506-392-670 |
— | ||
|
17
|
17
87512-371-670
Mark,caution
|
87512-371-670 |
— | ||
|
18
|
18
95701-0808500 Bolt, flange, 8x85 |
95701-0808500 |
from US $1.24 |
||
|
20
|
20
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
21
|
21
90512-392-000
Washer,8x20
|
90512-392-000 |
— | ||
|
23
|
23
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
24
|
24
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
25
|
25
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
28
|
28
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
29
|
29
94101-04700 WasherPLAIN, 4MM |
94101-04700 |
from US $0.37 |
||
|
30
|
30
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
