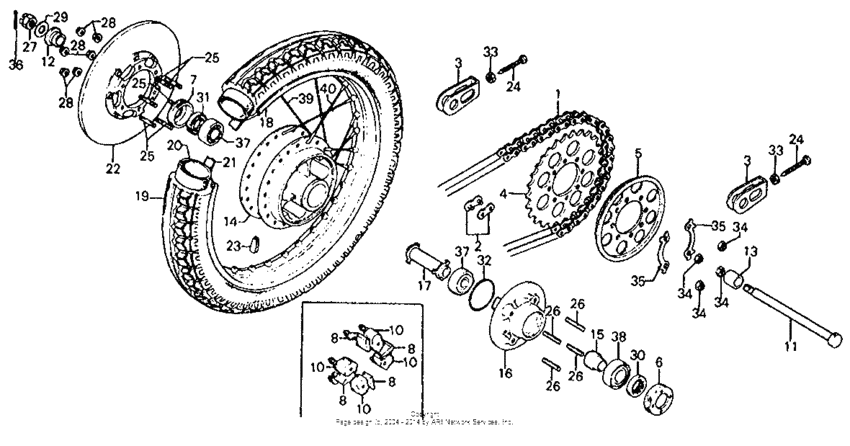

Rear wheel + disc + drive chain Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40530-426-671
Chain,drive(102l)
|
40530-426-671 |
— | ||
|
2
|
2
40531-392-305
Joint,drive chain
(Optional). |
40531-392-305 |
— | ||
|
3
|
3
40543-392-000
Adjuster,chain
|
40543-392-000 |
— | ||
|
4
|
4
41201-300-870
Sprocket,driven
|
41201-300-870 |
— | ||
|
5
|
5
41211-392-000
Plate,side
|
41211-392-000 |
— | ||
|
6
|
6
41231-283-000 Retainer, bearing |
41231-283-000 |
US $50.32 |
||
|
7
|
7
41231-286-000 Retainer,bearing |
41231-286-000 |
from US $29.78 |
||
|
8
|
8
41241-300-040 Damper,r rr wheel |
41241-300-040 |
US $15.64 |
||
|
10
|
10
41242-300-020 Damper,l rr wheel |
41242-300-020 |
from US $19.31 |
||
|
11
|
11
42301-392-010
Axle,rear wheel
|
42301-392-010 |
— | ||
|
12
|
12
42311-357-010
Collar,rr.wheel
|
42311-357-010 |
— | ||
|
13
|
13
42311-392-000
Coller,rr.wheel
|
42311-392-000 |
— | ||
| replacement | |||||
|
13
|
13
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
13
|
13
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
14
|
14
42601-392-000 Hub,rr.wheelUse up to Frame SN 2021927 |
42601-392-000 |
US $854.66 |
||
|
14
|
14
42601-392-010
Hub,rear wheel
Use from Frame SN 2021928 |
42601-392-010 |
— | ||
|
15
|
15
42605-300-000
Sleeve rr axle
|
42605-300-000 |
— | ||
|
16
|
16
42609-341-000
Flange,final
|
42609-341-000 |
— | ||
|
17
|
17
42620-392-000
Collar,distance
|
42620-392-000 |
— | ||
|
18
|
18
42701-300-013
Rim rear wheel
|
42701-300-013 |
— | ||
|
19
|
19
44711-341-003 Tire325h194ps21f2 |
44711-341-003 |
US $111.42 |
||
|
20
|
20
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
20
|
20
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
20
|
20
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
21
|
21
42713-300-003 Flap, tire (2.15-18) |
42713-300-003 |
US $8.19 |
||
|
21
|
21
42713-300-004 Flap, tire (2.15-18) |
42713-300-004 |
US $8.98 |
||
|
22
|
22
43120-371-000
Disk comp,brake
|
43120-371-000 |
— | ||
|
23
|
23
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
23
|
23
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
23
|
23
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
23
|
23
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
24
|
24
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
25
|
25
90125-329-010
Bolt, stud (8x45)
|
90125-329-010 |
— | ||
|
26
|
26
90128-341-000
Bolt,stud,12x54
|
90128-341-000 |
— | ||
|
27
|
27
90306-329-770 Nut, rr. wheel axle |
90306-329-770 |
from US $6.81 |
||
|
28
|
28
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
29
|
29
90523-292-000
Washer,18.5x38
|
90523-292-000 |
— | ||
|
30
|
30
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
31
|
31
91253-286-013 Dust-seal30-45-95 |
91253-286-013 |
from US $9.57 |
||
|
32
|
32
91258-300-013 D ring, |
91258-300-013 |
from US $7.25 |
||
|
33
|
33
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
34
|
34
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
35
|
35
94108-17000 Washer,a7,tongued |
94108-17000 |
US $0.89 |
||
|
36
|
36
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
37
|
37
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
38
|
38
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
|
39
|
39
97285-691-351-0 Spoke, bs8x147.5 |
97285-691-351-0 |
from US $2 |
||
|
40
|
40
97686-691-341-0 Spoke, bs8x147 |
97686-691-341-0 |
from US $2 |
||
