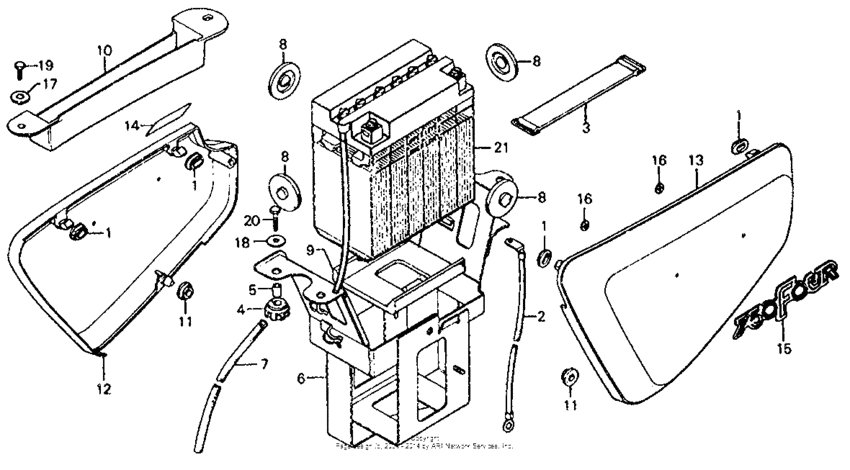

Side cover + battery Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
32601-392-000
Cable,earth
|
32601-392-000 |
— | ||
|
3
|
3
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
||
|
4
|
4
50323-300-010 Rubber a battery |
50323-300-010 |
US $5.77 |
||
|
5
|
5
50324-300-000 Collar battery |
50324-300-000 |
US $3.18 |
||
|
6
|
6
50325-392-000
Box, battery
|
50325-392-000 |
— | ||
|
7
|
7
50326-341-670
Tube,battery
|
50326-341-670 |
— | ||
|
8
|
8
50327-300-000 Rubber b battery |
50327-300-000 |
from US $7.28 |
||
|
9
|
9
50329-300-010
Rubber c battery
|
50329-300-010 |
— | ||
|
10
|
10
50341-392-000
Tray, tool
|
50341-392-000 |
— | ||
|
11
|
11
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
12
|
12
83600-392-000ZA
Cover,r.*nh-43*
|
83600-392-000ZA |
— | ||
|
13
|
13
83700-392-000ZA
Cover,l.*nh-43*
|
83700-392-000ZA |
— | ||
|
15
|
15
87127-392-000
Emblem,side cover
|
87127-392-000 |
— | ||
|
16
|
16
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
17
|
17
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
18
|
18
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
19
|
19
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
20
|
20
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
21
|
21
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
