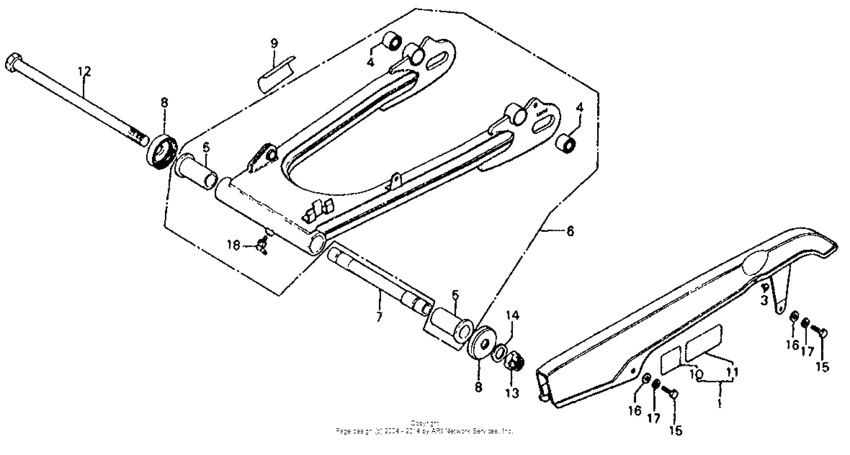

Swingarm + chain case Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40500-392-670
Case,drive chain
|
40500-392-670 |
— | ||
|
3
|
3
40514-333-000 Plug, chain guard |
40514-333-000 |
from US $2.66 |
||
|
4
|
4
40548-268-000 Bush, rubber |
40548-268-000 |
from US $7.10 |
||
|
5
|
5
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
6
|
6
52110-392-000ZA
Swingarm, rr. *nh1*
|
52110-392-000ZA |
— | ||
|
7
|
7
52141-390-010
Collar,rr. fork
|
52141-390-010 |
— | ||
|
8
|
8
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
9
|
9
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
10
|
10
87505-392-670
Mark,tire caution
|
87505-392-670 |
— | ||
|
11
|
11
87507-392-670
Mark,caution
|
87507-392-670 |
— | ||
|
12
|
12
90121-426-000
Bolt,rr.forkpivot
|
90121-426-000 |
— | ||
|
13
|
13
90354-268-000 Nut, self lock |
90354-268-000 |
from US $8.44 |
||
|
14
|
14
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
15
|
15
92101-06014-0A Bolt, hex., 6x14 |
92101-06014-0A |
from US $0.47 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
18
|
18
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
