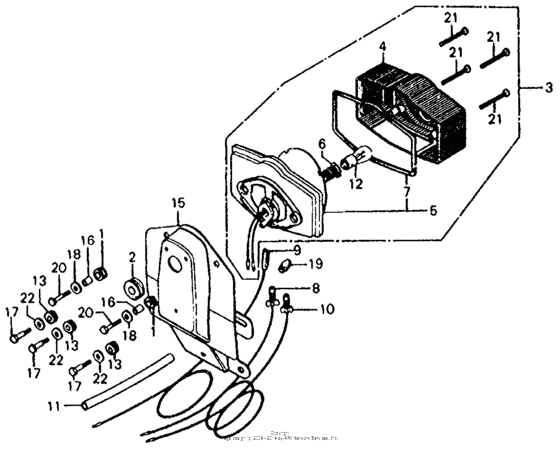

Taillight Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
2
|
2
32983-028-000 Grommet, wire harness |
32983-028-000 |
from US $1.92 |
||
|
3
|
3
33701-354-670
Unit, tail light
Use up to Frame SN 2021927 |
33701-354-670 |
— | ||
|
3
|
3
33701-341-910
Light unit,tail
Use from Frame SN 2021928 |
33701-341-910 |
— | ||
|
4
|
4
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
5
|
5
33703-354-670
Base.,tail light
Use up to Frame SN 2021927 |
33703-354-670 |
— | ||
|
5
|
5
33703-341-900
Base,tail light
Use from Frame SN 2021928 |
33703-341-900 |
— | ||
|
6
|
6
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
7
|
7
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
8
|
8
33711-323-000
Cord,tail light
|
33711-323-000 |
— | ||
|
9
|
9
33712-300-003
Cord tail light
|
33712-300-003 |
— | ||
|
10
|
10
33713-323-000
Cord,tail light
|
33713-323-000 |
— | ||
|
11
|
11
33720-300-000
Tube,wire cord
|
33720-300-000 |
— | ||
|
12
|
12
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
13
|
13
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
15
|
15
84701-392-670ZA
Bracket,no.*nh-1*
|
84701-392-670ZA |
— | ||
|
16
|
16
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
17
|
17
90162-283-000 Bolt, fender set. |
90162-283-000 |
from US $4.29 |
||
|
18
|
18
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
19
|
19
90899-283-000 Plug, cone |
90899-283-000 |
from US $2.59 |
||
|
20
|
20
92101-05020-0B Bolt, hex. (5x20) |
92101-05020-0B |
US $0.52 |
||
|
21
|
21
93500-040-550-B Screw,pan,4x55 |
93500-040-550-B |
from US $0.59 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
