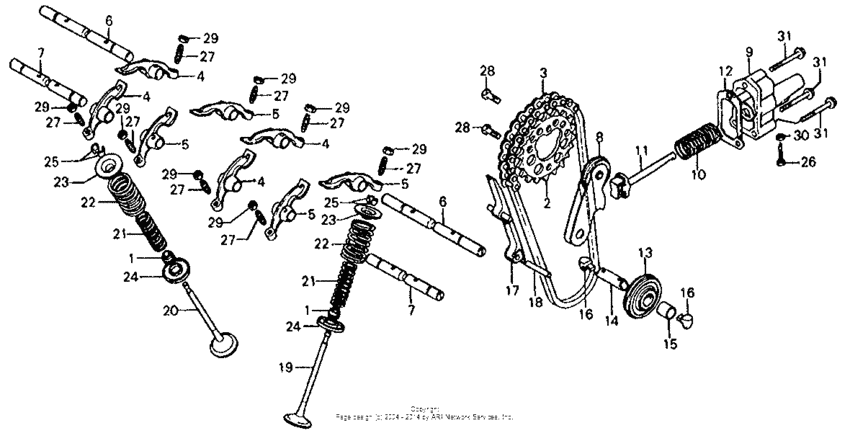

Valve + cam chain tensioner Diagram Honda CB750
- Year
- 1976
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2000003 - CB750F2022317
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-MB9-003 Seal |
12209-MB9-003 |
from US $12.88 |
||
|
2
|
2
14321-392-000
Sprocket,cam
|
14321-392-000 |
— | ||
|
3
|
3
14401-410-003 Chain,cam |
14401-410-003 |
US $56.30 |
||
|
4
|
4
14431-300-030 Arm a,valve rocke |
14431-300-030 |
US $78.20 |
||
|
5
|
5
14432-300-030
Arm b valve rocke
|
14432-300-030 |
— | ||
|
6
|
6
14461-300-020
Shaft,inlet rkr.
|
14461-300-020 |
— | ||
|
7
|
7
14462-300-010
Shaft,exh.rkr.arm
|
14462-300-010 |
— | ||
|
8
|
8
14500-300-000 Tensioner,chain |
14500-300-000 |
from US $102.17 |
||
|
9
|
9
14530-300-010
Holder,tensioner
|
14530-300-010 |
— | ||
|
10
|
10
14541-300-000
Spring,tensioner
|
14541-300-000 |
— | ||
|
11
|
11
14550-300-030
Bar,push
|
14550-300-030 |
— | ||
|
12
|
12
14592-300-306 Plate, tensioner |
14592-300-306 |
US $4.07 |
||
|
13
|
13
14601-312-000 Roller,cam.chain |
14601-312-000 |
from US $21.76 |
||
|
14
|
14
14605-286-020
Pin,chain roller
|
14605-286-020 |
— | ||
|
15
|
15
14606-286-000
Collar,roller
|
14606-286-000 |
— | ||
|
16
|
16
14607-300-000 Rubber,roleer pin |
14607-300-000 |
from US $7.99 |
||
|
17
|
17
14611-300-000 Guide,cam chain |
14611-300-000 |
US $28.97 |
||
|
18
|
18
14612-286-000
Pin,cam chain
|
14612-286-000 |
— | ||
|
19
|
19
14711-ME2-000 Valve,in. |
14711-ME2-000 |
US $39.17 |
||
|
20
|
20
14721-300-005 Valve,exhaust |
14721-300-005 |
US $92.48 |
||
|
21
|
21
14751-300-003 Spring,vlv-inner |
14751-300-003 |
US $13.02 |
||
|
22
|
22
14761-300-003 Spring,vlv-outer |
14761-300-003 |
US $14.01 |
||
|
23
|
23
14771-551-020
Retainer,vlv.spg.
|
14771-551-020 |
— | ||
|
24
|
24
14775-300-000 Seat,spring |
14775-300-000 |
US $3.55 |
||
| replacement | |||||
|
24
|
24
14775-410-010
Seat,valve spring
|
14775-410-010 |
— | ||
|
24
|
24
14775-410-010
Seat,valve spring
|
14775-410-010 |
— | ||
|
25
|
25
14781-551-000 Cotter, valve |
14781-551-000 |
from US $5.18 |
||
|
26
|
26
90009-300-010
Bolt,tensioner
|
90009-300-010 |
— | ||
|
27
|
27
90012-426-000 Screw, tappet adj |
90012-426-000 |
from US $4.07 |
||
|
28
|
28
90082-HA0-000 Bolt (7x10.5) |
90082-HA0-000 |
from US $2.59 |
||
|
29
|
29
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
||
|
30
|
30
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
31
|
31
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
