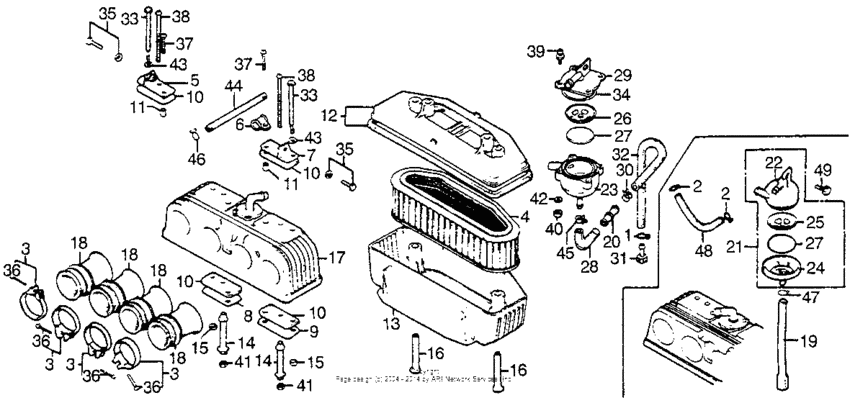

Air filter Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE Use from Frame SN 2250001 |
15707-634-000 |
from US $2 |
||
|
2
|
2
15772-551-000 ClipBREATHER TUBE |
15772-551-000 |
from US $3.09 |
||
|
2
|
2
15772-551-680 Clip,tube |
15772-551-680 |
US $8.91 |
||
|
3
|
3
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
4
|
4
17211-405-000 Element,air/c |
17211-405-000 |
US $55.62 |
||
|
5
|
5
17215-392-000
Stay,r.cleaner
|
17215-392-000 |
— | ||
|
6
|
6
17215-393-780
Clip,air vent tu.
|
17215-393-780 |
— | ||
|
7
|
7
17216-392-000
Stay,l.cleaner
|
17216-392-000 |
— | ||
|
8
|
8
17217-392-000
Plate,r.cleaner
|
17217-392-000 |
— | ||
|
9
|
9
17218-392-000
Plate,l.cleaner
|
17218-392-000 |
— | ||
|
10
|
10
17219-392-000
Rubber,mount
|
17219-392-000 |
— | ||
|
11
|
11
17220-300-010
Collar,case.set
|
17220-300-010 |
— | ||
|
12
|
12
17230-405-305
Separatop comp.ac
|
17230-405-305 |
— | ||
|
13
|
13
17231-392-000
Cover,air cleaner
|
17231-392-000 |
— | ||
|
14
|
14
17237-392-000
Collar,cleaner
|
17237-392-000 |
— | ||
|
15
|
15
17238-392-000
Nut,a,cleaner
|
17238-392-000 |
— | ||
|
16
|
16
17239-392-000
Nut,b,cleaner
|
17239-392-000 |
— | ||
|
17
|
17
17240-405-315
Case,air cleaner
|
17240-405-315 |
— | ||
|
18
|
18
17253-405-300 Tube,connecting |
17253-405-300 |
from US $14.28 |
||
|
20
|
20
17359-419-670 Joint, breather tube |
17359-419-670 |
from US $2.59 |
||
|
23
|
23
17361-405-770
Body,breather
|
17361-405-770 |
— | ||
|
26
|
26
17363-405-770
Holder,element
|
17363-405-770 |
— | ||
|
27
|
27
17364-405-000
Element a
|
17364-405-000 |
— | ||
|
28
|
28
17365-405-770
Tube a, drain
|
17365-405-770 |
— | ||
|
29
|
29
17366-405-770
Cover, chamber
|
17366-405-770 |
— | ||
|
30
|
30
17369-419-670 Clip, tube (a13.5) |
17369-419-670 |
from US $5.78 |
||
|
31
|
31
17370-419-700 Plug, breather tubeUse from Frame SN 2250001 |
17370-419-700 |
from US $3.48 |
||
|
32
|
32
17376-405-770
Tube b, drain
|
17376-405-770 |
— | ||
|
33
|
33
90143-392-000
Bolt,air cleaner
|
90143-392-000 |
— | ||
|
34
|
34
91311-881-003 O-ring, 62x2.5 |
91311-881-003 |
US $5.19 |
||
|
35
|
35
93483-060-120-0 Bolt-washer,6x12 |
93483-060-120-0 |
US $0.59 |
||
|
36
|
36
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
37
|
37
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
38
|
38
93500-060-800-A Screw pan 6x80 |
93500-060-800-A |
from US $0.74 |
||
|
39
|
39
93891-0402000 Screw-washer (4x20) |
93891-0402000 |
US $0.44 |
||
|
40
|
40
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
41
|
41
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
42
|
42
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
43
|
43
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
44
|
44
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
45
|
45
9500201160 Clip, tube (a16) |
9500201160 |
from US $1.41 |
||
|
46
|
46
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
48
|
48
95005-120-0120M
Bulk hose (12x1000)
|
95005-120-0120M |
— | ||
|
49
|
49
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
