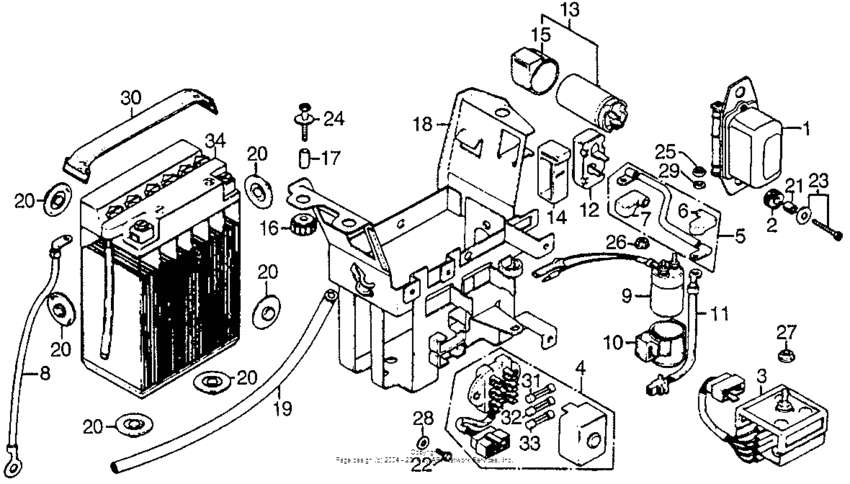

Battery + regulator Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-300-035
Regulator
|
31400-300-035 |
— | ||
|
2
|
2
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
3
|
3
31700-333-008
Rectifire,silicon
|
31700-333-008 |
— | ||
|
4
|
4
32110-341-702 Box assy., fuse |
32110-341-702 |
US $48.69 |
||
|
5
|
5
32401-392-000
Cable,starter
|
32401-392-000 |
— | ||
|
6
|
6
32412-MJ0-000
Cover
|
32412-MJ0-000 |
— | ||
|
7
|
7
32413-300-010
Cover b battery
|
32413-300-010 |
— | ||
|
8
|
8
32601-392-000
Cable,earth
|
32601-392-000 |
— | ||
|
9
|
9
35850-375-000
Switch,magnetic
|
35850-375-000 |
— | ||
|
10
|
10
35856-413-010 Shock rubber (mag |
35856-413-010 |
from US $8.58 |
||
|
11
|
11
35858-333-000
Sub cord,magnetic
|
35858-333-000 |
— | ||
|
12
|
12
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
12
|
12
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
14
|
14
38306-092-670
Suspension,winker
|
38306-092-670 |
— | ||
|
16
|
16
50323-300-010 Rubber a battery |
50323-300-010 |
US $5.77 |
||
|
17
|
17
50324-300-000 Collar battery |
50324-300-000 |
US $3.18 |
||
|
18
|
18
50325-405-770
Box, battery
|
50325-405-770 |
— | ||
|
19
|
19
50326-341-670
Tube,battery
|
50326-341-670 |
— | ||
|
20
|
20
50327-300-000 Rubber b battery |
50327-300-000 |
from US $7.28 |
||
|
21
|
21
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
22
|
22
92101-05014-0A Bolt, hex. (5x14) |
92101-05014-0A |
from US $0.37 |
||
|
23
|
23
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
23
|
23
93494-060-200-8
Bolt-washer
|
93494-060-200-8 |
— | ||
| replacement | |||||
|
23
|
23
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
25
|
25
94002-060-800-S NutHEX., 6MM |
94002-060-800-S |
from US $0.44 |
||
|
26
|
26
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
27
|
27
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
28
|
28
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
29
|
29
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
30
|
30
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
||
|
31
|
31
98200-10500 Fuse a5A |
98200-10500 |
from US $0.59 |
||
|
32
|
32
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
|
33
|
33
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
|
34
|
34
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
||
