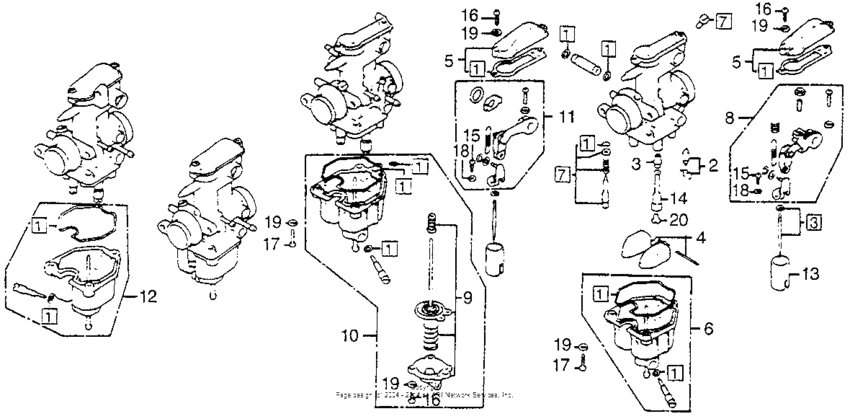

Carburetor components Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-405-004 Packing set |
16010-405-004 |
from US $21.70 |
||
|
2
|
2
16011-KCK-910 Valve set, floatUse up to Engine SN PD42A A |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-410-601
Needle set,jet
|
16012-410-601 |
— | ||
|
4
|
4
16013-KCY-670 Float set |
16013-KCY-670 |
US $73.92 |
||
|
5
|
5
16014-KCE-771
Top set
|
16014-KCE-771 |
— | ||
|
6
|
6
16015-KN4-A10 Chamber set, float |
16015-KN4-A10 |
from US $82.96 |
||
|
7
|
7
16016-410-601 Screw set a |
16016-410-601 |
from US $19.98 |
||
|
8
|
8
16018-410-004
Arm set a,link
|
16018-410-004 |
— | ||
|
9
|
9
16021-393-004 Diaphragm,pump |
16021-393-004 |
US $104.20 |
||
|
10
|
10
16023-393-004
Chbr.set b,float
|
16023-393-004 |
— | ||
|
11
|
11
16031-393-014
Arm set b,link
|
16031-393-014 |
— | ||
|
12
|
12
16015-KFC-910 Chamber set, float |
16015-KFC-910 |
US $85 |
||
|
13
|
13
16111-410-004
Valve,throttle
|
16111-410-004 |
— | ||
|
14
|
14
16165-410-004
Holder,jet needle
|
16165-410-004 |
— | ||
|
15
|
15
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
16
|
16
93500-040-120-H ScrewPAN, 4X12 |
93500-040-120-H |
from US $0.37 |
||
|
17
|
17
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
18
|
18
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
19
|
19
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
20
|
20
99101-GHB-1050 Jet, main (#105) |
99101-GHB-1050 |
from US $5.59 |
