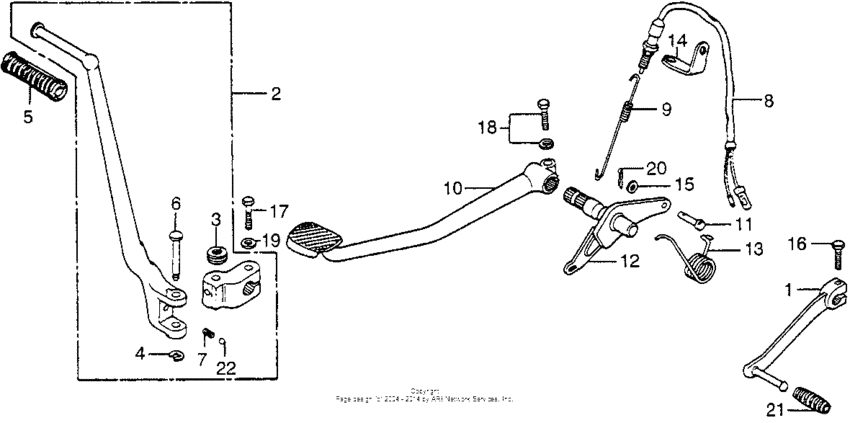

Change pedal + brake pedal + kick start arm Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-410-000
Pedal,gear change
|
24701-410-000 |
— | ||
|
2
|
2
28240-392-000
Kick,starter
|
28240-392-000 |
— | ||
|
3
|
3
28292-250-010
Spring, starter
|
28292-250-010 |
— | ||
|
4
|
4
28293-250-000
Clip
|
28293-250-000 |
— | ||
|
5
|
5
28311-329-000 Rubber,kick |
28311-329-000 |
from US $7.84 |
||
|
6
|
6
28321-300-000
Pin kick knukle
|
28321-300-000 |
— | ||
|
7
|
7
28333-300-000 Spring |
28333-300-000 |
from US $2.14 |
||
|
8
|
8
35350-GB2-505
Sw assy,rear stop
|
35350-GB2-505 |
— | ||
|
9
|
9
35357-107-010 Spring, stop switch |
35357-107-010 |
from US $3.54 |
||
|
10
|
10
46500-410-000
Pedal,rr.brake
|
46500-410-000 |
— | ||
|
11
|
11
46503-371-000 Pin, brake rod |
46503-371-000 |
US $4.07 |
||
|
12
|
12
46510-410-000
Spindle,rr.brake
|
46510-410-000 |
— | ||
|
13
|
13
46514-410-770
Sp,brake.pedal
|
46514-410-770 |
— | ||
|
14
|
14
50146-410-000
Bracket,stop sw.
|
50146-410-000 |
— | ||
|
15
|
15
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.07 |
||
|
16
|
16
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
17
|
17
92101-08028-0B
Bolt, hex. (8x28)
|
92101-08028-0B |
— | ||
|
18
|
18
93482-080-280-0
Bolt-washer 8x28
|
93482-080-280-0 |
— | ||
|
19
|
19
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
|
20
|
20
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
21
|
21
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
22
|
22
96211-08000 Ball |
96211-08000 |
from US $0.22 |
