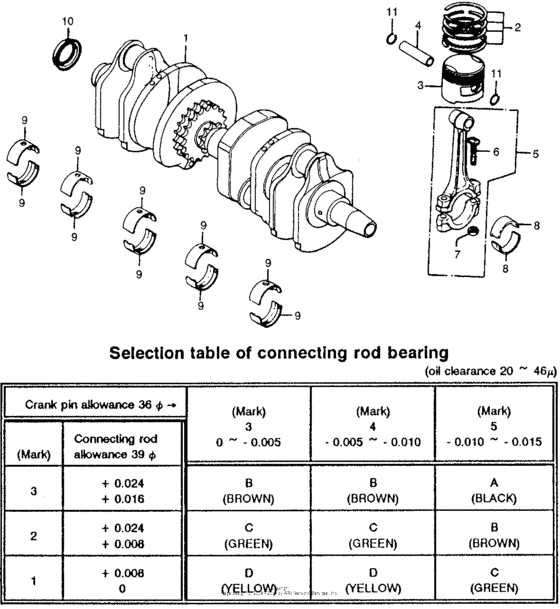

Crankshaft + piston Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-300-050
Crankshaft
|
13000-300-050 |
— | ||
|
2
|
2
13011-410-601
Ring set (std)
|
13011-410-601 |
— | ||
|
2
|
2
13021-410-601
Ring set (os) (0.25)
(Optional). |
13021-410-601 |
— | ||
|
2
|
2
13031-410-601
Ring set (os) (0.50)
(Optional). |
13031-410-601 |
— | ||
|
2
|
2
13041-410-601
Ring set (os) (0.75)
(Optional). |
13041-410-601 |
— | ||
|
2
|
2
13051-410-601
Ring set (1.00)
(Optional). |
13051-410-601 |
— | ||
|
3
|
3
13103-410-003
Piston (os) (0.50)
(Optional). |
13103-410-003 |
— | ||
|
3
|
3
13101-410-003
Piston (std)
|
13101-410-003 |
— | ||
|
3
|
3
13102-410-003
Piston (os) (0.25)
(Optional). |
13102-410-003 |
— | ||
|
3
|
3
13104-410-003
Piston (0.75)
(Optional). |
13104-410-003 |
— | ||
|
3
|
3
13105-410-003
Piston (1.00)
(Optional). |
13105-410-003 |
— | ||
|
4
|
4
13111-300-000 Pin, piston |
13111-300-000 |
from US $15.83 |
||
|
5
|
5
13202-410-000 Rod comp.b,conn. |
13202-410-000 |
US $363.28 |
||
|
5
|
5
13204-410-000 Rod comp.d,conn. |
13204-410-000 |
US $363.28 |
||
|
5
|
5
13206-410-000 Rod comp.f,conn. |
13206-410-000 |
US $363.28 |
||
|
5
|
5
13208-410-000 Rod comp.h,conn. |
13208-410-000 |
US $363.28 |
||
|
5
|
5
13210-410-000 Rod comp.k,conn. |
13210-410-000 |
US $363.28 |
||
|
6
|
6
13213-KV0-000 Bolt, connecting rod |
13213-KV0-000 |
from US $5.92 |
||
|
7
|
7
13214-410-003 Nut, connecting rod |
13214-410-003 |
from US $5.71 |
||
|
8
|
8
13215-410-015 Brg,conn.rod |
13215-410-015 |
from US $19.16 |
||
|
8
|
8
13216-410-015 Brg,conn rod |
13216-410-015 |
from US $19.16 |
||
|
8
|
8
13216-413-015 BEARING C, CONNECTING ROD (BROWN) (TAIHO) |
13216-413-015 |
from US $12.43 |
||
|
8
|
8
13217-413-015 BEARING D, CONNECTING ROD (GREEN) (TAIHO) |
13217-413-015 |
from US $13.02 |
||
|
8
|
8
13218-413-015 BEARING E, CONNECTING ROD (YELLOW) (TAIHO) |
13218-413-015 |
from US $11.25 |
||
|
9
|
9
13315-422-003
Bearing a, crank
|
13315-422-003 |
— | ||
| replacement | |||||
|
9
|
9
13315-425-003 BEARING A, CRANKSHAFT (BLACK) |
13315-425-003 |
from US $16.32 |
||
|
9
|
9
13315-425-003 BEARING A, CRANKSHAFT (BLACK) |
13315-425-003 |
from US $16.32 |
||
|
9
|
9
13316-300-013 Bearing b crank |
13316-300-013 |
US $23.10 |
||
| replacement | |||||
|
9
|
9
13316-425-003 BEARING B, CRANKSHAFT (BROWN) |
13316-425-003 |
from US $17.95 |
||
|
9
|
9
13316-425-003 BEARING B, CRANKSHAFT (BROWN) |
13316-425-003 |
from US $17.95 |
||
|
9
|
9
13317-425-003 BEARING C, CRANKSHAFT (GREEN) |
13317-425-003 |
from US $9.77 |
||
|
9
|
9
13318-422-003
Bearing.d, crank
|
13318-422-003 |
— | ||
| replacement | |||||
|
9
|
9
13318-425-003 BEARING D, CRANKSHAFT (YELLOW) |
13318-425-003 |
from US $17.14 |
||
|
9
|
9
13318-425-003 BEARING D, CRANKSHAFT (YELLOW) |
13318-425-003 |
from US $17.14 |
||
|
10
|
10
91201-300-003 Oil seal |
91201-300-003 |
from US $13.84 |
||
|
11
|
11
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
||
