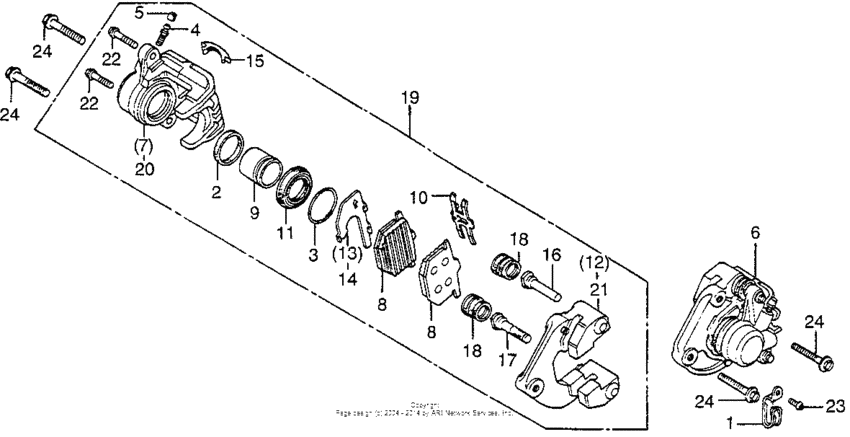

Front brake caliper Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32906-049-000
Clip
|
32906-049-000 |
— | ||
|
2
|
2
43209-371-006 SealPISTON (38MM) |
43209-371-006 |
from US $8.88 |
||
|
3
|
3
43218-371-006 Clip,dust cover |
43218-371-006 |
from US $10.80 |
||
|
4
|
4
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
5
|
5
43353-548-003 CapBLEEDER SCREW |
43353-548-003 |
from US $2.25 |
||
|
6
|
6
45100-410-016 Caliper assy,l.fr |
45100-410-016 |
US $803.52 |
||
|
7
|
7
45101-442-701
Caliper,l.
|
45101-442-701 |
— | ||
|
8
|
8
45105-410-005 Pad compUse up to Frame SN 2206700 |
45105-410-005 |
US $55.35 |
||
|
9
|
9
45107-410-006 Piston |
45107-410-006 |
US $50.73 |
||
|
10
|
10
45108-410-006
Pad,spring
|
45108-410-006 |
— | ||
|
11
|
11
45109-371-006 Boot,piston |
45109-371-006 |
from US $17.41 |
||
|
12
|
12
45110-410-006
Bracket, front l.
|
45110-410-006 |
— | ||
|
13
|
13
45114-371-006 Shim a,pad |
45114-371-006 |
US $11.40 |
||
|
14
|
14
45116-371-006 Shim b,pad |
45116-371-006 |
US $11.40 |
||
|
15
|
15
45119-371-000 Cap,indicater |
45119-371-000 |
US $9.70 |
||
|
16
|
16
45131-410-006
Pin a
|
45131-410-006 |
— | ||
|
17
|
17
45132-410-006
Pin b comp.
|
45132-410-006 |
— | ||
|
18
|
18
45133-371-006 Cover, dust |
45133-371-006 |
from US $9.61 |
||
|
19
|
19
45200-410-016
Caliper assy,r.fr
|
45200-410-016 |
— | ||
|
20
|
20
45201-442-701
Caliper,r.
|
45201-442-701 |
— | ||
|
21
|
21
45210-410-006
Bracket,r.fr
|
45210-410-006 |
— | ||
|
22
|
22
90116-410-006 Bolt (8x25) |
90116-410-006 |
from US $5.03 |
||
|
23
|
23
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
23
|
23
93500-06008 Screw, pan, 6x8 |
93500-06008 |
from US $0.44 |
||
|
23
|
23
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
24
|
24
95801-100-320-0 Bolt,flange,10x32 |
95801-100-320-0 |
from US $0.81 |
