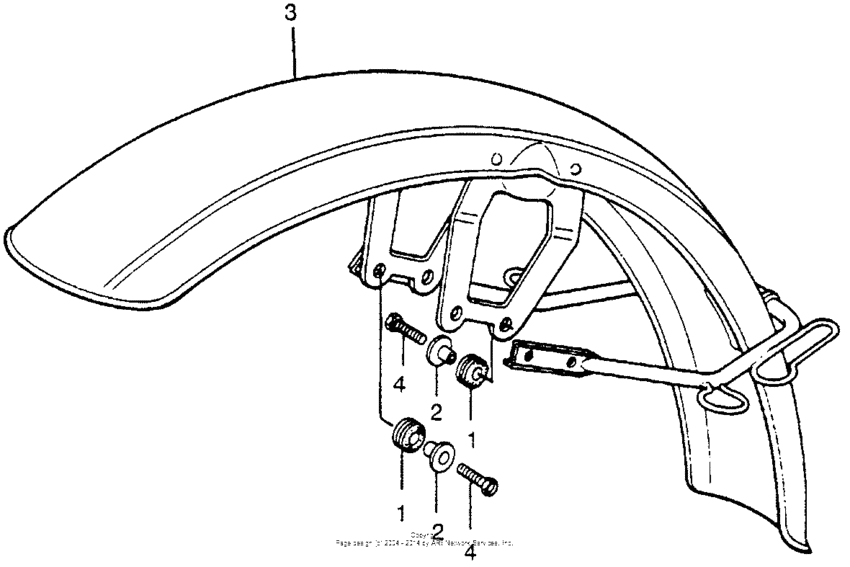

Front fender Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40513-310-000 Rubber, chain case mounting |
40513-310-000 |
from US $3.48 |
||
|
2
|
2
40514-310-000 Collar, chain case |
40514-310-000 |
from US $6.36 |
||
|
3
|
3
61100-410-000
Fender comp.,fr.
|
61100-410-000 |
— | ||
|
4
|
4
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
