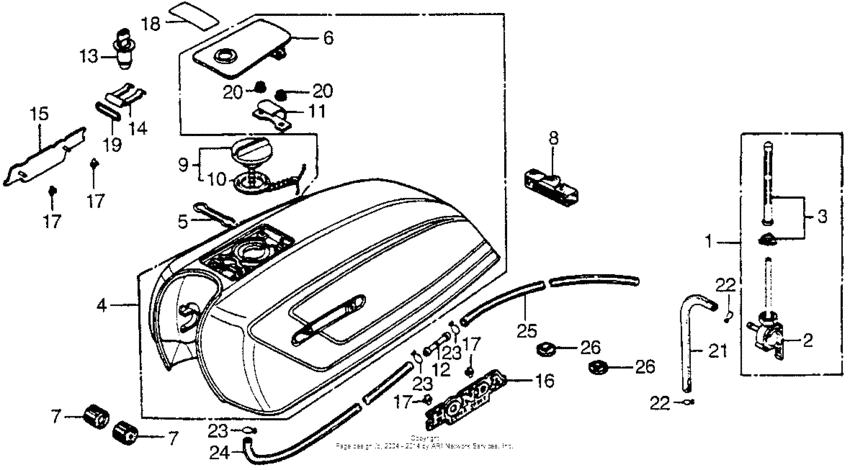

Fuel tank Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-410-015
Cock assy.,fuel
Use up to Frame SN 2250951 |
16950-410-015 |
— | ||
|
2
|
2
16951-410-015
Body set,cock
Use up to Frame SN 2250951 |
16951-410-015 |
— | ||
|
3
|
3
16952-388-015 Screew set,strn.Use up to Frame SN 2250951 |
16952-388-015 |
from US $33.03 |
||
|
4
|
4
17520-410-770ZA
Tk sub, fuel *r8cs*
|
17520-410-770ZA |
— | ||
|
4
|
4
17520-410-770ZB
Tank assy.*nh-1*
|
17520-410-770ZB |
— | ||
|
5
|
5
17526-390-000
Clip, filler lock
|
17526-390-000 |
— | ||
|
6
|
6
17531-410-000ZA
Lid,tank*r-8c-s*
|
17531-410-000ZA |
— | ||
|
6
|
6
17531-410-000ZC
Lid,tank*nh-1*
|
17531-410-000ZC |
— | ||
|
7
|
7
17611-283-010 Cushion, tank |
17611-283-010 |
from US $10.15 |
||
|
8
|
8
17613-392-000
Cushion,tank rr.
|
17613-392-000 |
— | ||
| replacement | |||||
|
8
|
8
17613-399-000 Cushion,tank rr. |
17613-399-000 |
from US $21.22 |
||
|
8
|
8
17613-399-000 Cushion,tank rr. |
17613-399-000 |
from US $21.22 |
||
|
9
|
9
17620-399-010
Cap comp.,fuel ta
|
17620-399-010 |
— | ||
|
10
|
10
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
10
|
10
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
11
|
11
17735-390-000
Spring,tank lid
|
17735-390-000 |
— | ||
|
12
|
12
17738-393-000
Joint,drain tube
|
17738-393-000 |
— | ||
|
13
|
13
37220-390-007
Lock,filler lid
|
37220-390-007 |
— | ||
|
14
|
14
37221-390-000
Spring, lock set
|
37221-390-000 |
— | ||
|
15
|
15
87121-410-000
Emb.,r.fuel tank
|
87121-410-000 |
— | ||
|
16
|
16
87122-410-000
Emb.,l.fuel tank
|
87122-410-000 |
— | ||
|
17
|
17
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
17
|
17
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
17
|
17
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
18
|
18
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
19
|
19
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
20
|
20
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
21
|
21
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
22
|
22
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
23
|
23
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
24
|
24
95003-270-553-1
V tube,9x13x550
|
95003-270-553-1 |
— | ||
|
25
|
25
95003-270-673-1
Tube,v.,9x13x670
|
95003-270-673-1 |
— | ||
|
26
|
26
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.63 |
||
