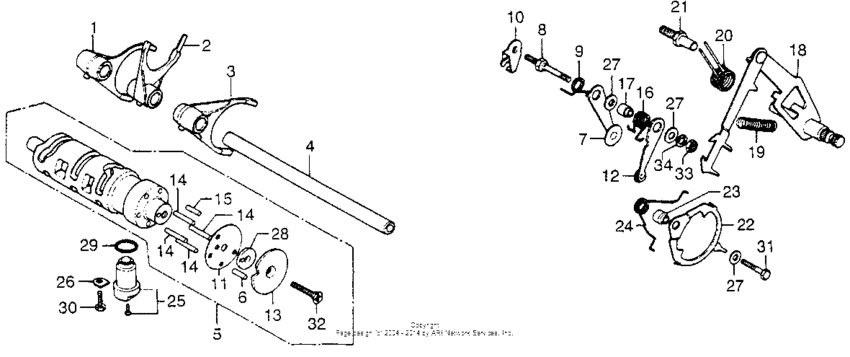

Gearshift drum + spindle Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-300-020
Fork,right shift
|
24211-300-020 |
— | ||
|
2
|
2
24212-300-030 Fork,center gear |
24212-300-030 |
US $68.29 |
||
|
3
|
3
24213-300-020
Fork,left shift
|
24213-300-020 |
— | ||
|
4
|
4
24261-300-030
Shaft,shift fork
|
24261-300-030 |
— | ||
|
5
|
5
24300-392-000
Drum,gear shift
|
24300-392-000 |
— | ||
|
6
|
6
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
7
|
7
24430-392-000
Stopper,drum
|
24430-392-000 |
— | ||
|
8
|
8
24434-300-000
Pivot,drumstopper
|
24434-300-000 |
— | ||
|
9
|
9
24435-300-030
Spring,stopper
|
24435-300-030 |
— | ||
|
10
|
10
24436-392-000
Plate,stopper
|
24436-392-000 |
— | ||
|
11
|
11
24438-392-000
Plate,spacer
|
24438-392-000 |
— | ||
|
12
|
12
24440-392-000
Arm,stopper
|
24440-392-000 |
— | ||
|
13
|
13
24441-392-000
Plate,stopper
|
24441-392-000 |
— | ||
|
14
|
14
24443-300-000
Roller,4x23,8
|
24443-300-000 |
— | ||
|
15
|
15
96220-40208 Roller (4x20.8) |
96220-40208 |
from US $0.37 |
||
|
16
|
16
24445-300-020
Spring,stopper
|
24445-300-020 |
— | ||
|
17
|
17
24447-300-000
Pivot,stopper
|
24447-300-000 |
— | ||
|
18
|
18
24610-300-010
Spindle,shift
|
24610-300-010 |
— | ||
|
19
|
19
24641-300-000
Spring,shift arm
|
24641-300-000 |
— | ||
|
20
|
20
24651-300-020
Spring,return
|
24651-300-020 |
— | ||
|
21
|
21
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
21
|
21
24652-300-000
Pin
|
24652-300-000 |
— | ||
|
22
|
22
24661-300-000
Stopper,shift
|
24661-300-000 |
— | ||
|
23
|
23
24663-300-000
Collar,arm
|
24663-300-000 |
— | ||
|
24
|
24
24666-300-000
Spring
|
24666-300-000 |
— | ||
|
25
|
25
35752-300-020 Switch,neutral |
35752-300-020 |
from US $57.39 |
||
|
26
|
26
35754-300-020
Stopper,switch
|
35754-300-020 |
— | ||
|
27
|
27
90417-001-000
Washer,shift drum
|
90417-001-000 |
— | ||
|
28
|
28
90436-392-000
Washer,20mm
|
90436-392-000 |
— | ||
|
29
|
29
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
29
|
29
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
30
|
30
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
31
|
31
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
32
|
32
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
33
|
33
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
34
|
34
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
