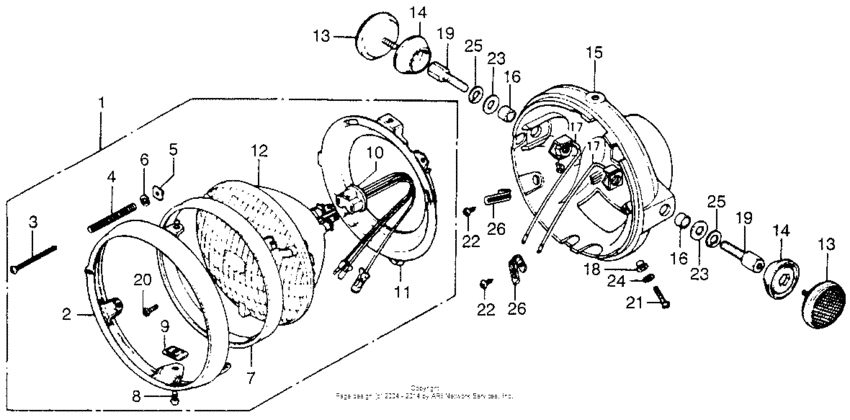

Headlight Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-405-671
Light assy.,head
|
33100-405-671 |
— | ||
|
2
|
2
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
7
|
7
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
8
|
8
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
9
|
9
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
10
|
10
33130-300-003
Socket,head lt.
|
33130-300-003 |
— | ||
|
11
|
11
33153-375-671
Ring, setting
|
33153-375-671 |
— | ||
|
12
|
12
33120-431-505
Set unit,head lig
|
33120-431-505 |
— | ||
|
13
|
13
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
13
|
13
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
14
|
14
33743-375-000 Base,fr reflector |
33743-375-000 |
US $10.79 |
||
|
15
|
15
61301-393-771ZA
Case,head lt*nh-1
|
61301-393-771ZA |
— | ||
|
16
|
16
61302-300-000 Collar,light case |
61302-300-000 |
US $6.66 |
||
|
17
|
17
61303-336-000 Washer,light case |
61303-336-000 |
US $13.47 |
||
|
18
|
18
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
19
|
19
90120-377-000
Bolt,headlightsty
|
90120-377-000 |
— | ||
|
20
|
20
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
21
|
21
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
22
|
22
93901-14110 ScrewTAPPING, 4X8 |
93901-14110 |
US $0.37 |
||
|
23
|
23
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
||
|
24
|
24
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
25
|
25
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
26
|
26
9459145000 Clip, wire, 4x50 |
9459145000 |
from US $1.04 |
||
