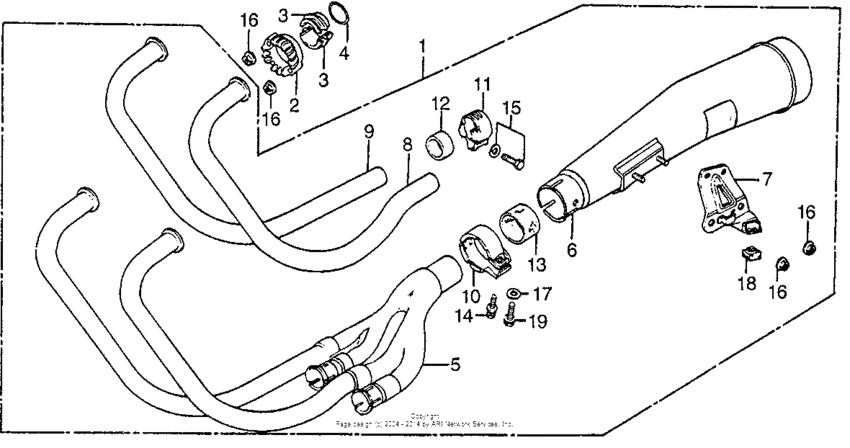

Muffler Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18200-410-777
Muffler comp.,ex.
|
18200-410-777 |
— | ||
|
2
|
2
18231-392-000
Joint,ex.pipe
|
18231-392-000 |
— | ||
|
3
|
3
18233-392-000 Collar,ex.pipe |
18233-392-000 |
US $17.14 |
||
|
4
|
4
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
5
|
5
18300-410-771
Pipe comp.,ex.
Use up to Frame SN 2212370 |
18300-410-771 |
— | ||
|
6
|
6
18310-410-677
Muffler comp.,ex.
|
18310-410-677 |
— | ||
|
7
|
7
18312-410-770
Bracket, muffler
|
18312-410-770 |
— | ||
|
8
|
8
18331-410-770
Pipe comp.1,ex.
Use up to Frame SN 2210163 |
18331-410-770 |
— | ||
|
9
|
9
18361-410-003
Pipe comp.3,ee.
Use up to Frame SN 2210163 |
18361-410-003 |
— | ||
|
9
|
9
18361-410-770
Pipe comp.,3, ex
Use from Frame SN 2210164 |
18361-410-770 |
— | ||
|
10
|
10
18371-410-000
Band,muffler
|
18371-410-000 |
— | ||
|
11
|
11
18372-410-010
Band, ex. pipe
Use up to Frame SN 2212370 |
18372-410-010 |
— | ||
|
12
|
12
18391-MN5-650 Gasket, mufflerUse up to Frame SN 2208240 |
18391-MN5-650 |
from US $14.14 |
||
|
12
|
12
18391-410-306
Gasket, muffler
Use from Frame SN 2208241 |
18391-410-306 |
— | ||
|
13
|
13
18391-390-405
Gasket, muffler
|
18391-390-405 |
— | ||
|
14
|
14
90105-390-000
Bolt,muffler set
|
90105-390-000 |
— | ||
|
15
|
15
93481-080-250-8
Bolt-washer,8x25
|
93481-080-250-8 |
— | ||
|
16
|
16
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
17
|
17
94102-08000 Washer, plain, 8mmUse from Frame SN 2208311 |
94102-08000 |
from US $0.37 |
||
|
18
|
18
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
19
|
19
95701-080-250-0 BoltFLANGE, 8X25 Use from Frame SN 2208311 |
95701-080-250-0 |
from US $0.74 |
