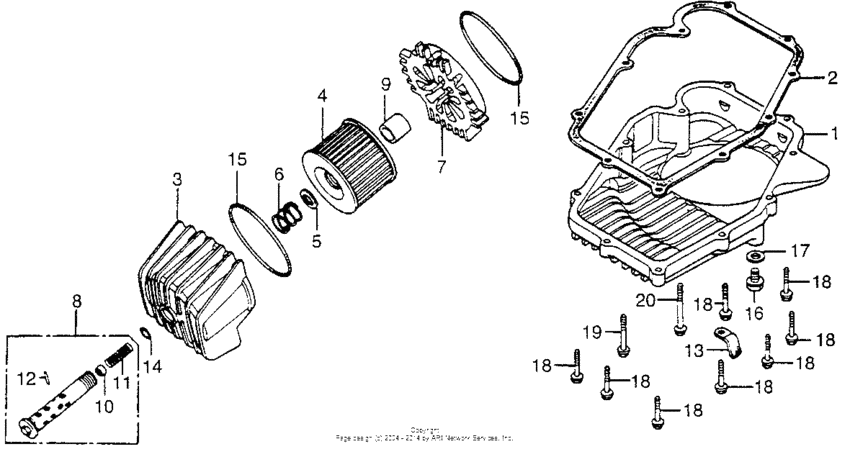

Oil filter + oil pan Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-410-000
Pan, oil
|
11210-410-000 |
— | ||
|
2
|
2
11398-300-306 Gasket, oil pan |
11398-300-306 |
US $24.89 |
||
|
3
|
3
15411-410-000
Case,oil filter
|
15411-410-000 |
— | ||
|
4
|
4
15410-426-010 Element, oil filter |
15410-426-010 |
from US $11.51 |
||
|
5
|
5
15414-300-000 Seat |
15414-300-000 |
from US $2.44 |
||
|
6
|
6
15415-300-000 Spring |
15415-300-000 |
from US $7.67 |
||
|
7
|
7
15416-410-000
Base,oil filter
|
15416-410-000 |
— | ||
|
8
|
8
15420-333-000
Bolt,center oil
|
15420-333-000 |
— | ||
|
9
|
9
15423-333-000
Collar,oil filter
|
15423-333-000 |
— | ||
|
10
|
10
15473-300-300 Valve, check |
15473-300-300 |
from US $4.88 |
||
|
11
|
11
15474-300-310 Spring, check valve |
15474-300-310 |
from US $4.88 |
||
|
12
|
12
15477-300-300 Pin, spring setting |
15477-300-300 |
from US $4 |
||
|
13
|
13
32111-300-000
Cramper,cord
|
32111-300-000 |
— | ||
|
14
|
14
91302-377-000 O-ring (15x2.5) |
91302-377-000 |
from US $5.18 |
||
|
15
|
15
91316-425-003 O-ring (89x4.5) |
91316-425-003 |
from US $7.06 |
||
|
16
|
16
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
17
|
17
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
18
|
18
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
18
|
18
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
18
|
18
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
19
|
19
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
20
|
20
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
