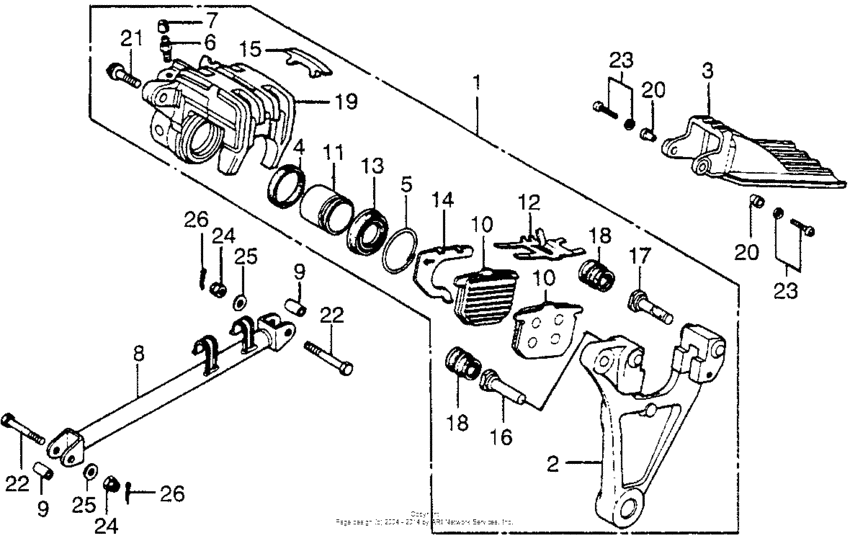

Rear brake caliper Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43100-410-026
Caliper assy,rr.
Use up to Frame SN 2206140 |
43100-410-026 |
— | ||
|
2
|
2
43110-410-006
Bracket,rr
|
43110-410-006 |
— | ||
|
3
|
3
43140-410-000
Cover,rr.disk
|
43140-410-000 |
— | ||
|
4
|
4
43209-371-006 SealPISTON (38MM) |
43209-371-006 |
from US $8.88 |
||
|
5
|
5
43218-371-006 Clip,dust cover |
43218-371-006 |
from US $10.80 |
||
|
6
|
6
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
7
|
7
43353-548-003 CapBLEEDER SCREW |
43353-548-003 |
from US $2.25 |
||
|
8
|
8
43431-410-000
Link comp.,torque
|
43431-410-000 |
— | ||
|
9
|
9
43435-392-000 Collar, link |
43435-392-000 |
from US $5.21 |
||
|
10
|
10
45105-410-005 Pad compUse up to Frame SN 2206140 |
45105-410-005 |
US $55.35 |
||
|
11
|
11
45107-410-006 Piston |
45107-410-006 |
US $50.73 |
||
|
12
|
12
45108-410-006
Pad,spring
|
45108-410-006 |
— | ||
|
13
|
13
45109-371-006 Boot,piston |
45109-371-006 |
from US $17.41 |
||
|
14
|
14
45116-371-006 Shim b,pad |
45116-371-006 |
US $11.40 |
||
|
15
|
15
45119-371-000 Cap,indicater |
45119-371-000 |
US $9.70 |
||
|
16
|
16
45131-410-006
Pin a
|
45131-410-006 |
— | ||
|
17
|
17
45132-410-006
Pin b comp.
|
45132-410-006 |
— | ||
|
18
|
18
45133-371-006 Cover, dust |
45133-371-006 |
from US $9.61 |
||
|
19
|
19
45201-442-701
Caliper,r.
|
45201-442-701 |
— | ||
|
20
|
20
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
21
|
21
90116-410-006 Bolt (8x25) |
90116-410-006 |
from US $5.03 |
||
|
22
|
22
90124-392-000
Bolt, rr
|
90124-392-000 |
— | ||
|
23
|
23
93892-050-160-7 Screw-washer5X16 |
93892-050-160-7 |
from US $0.44 |
||
|
24
|
24
94011-080000S Nut, self-lock (8mm) |
94011-080000S |
from US $0.65 |
||
|
25
|
25
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
26
|
26
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
