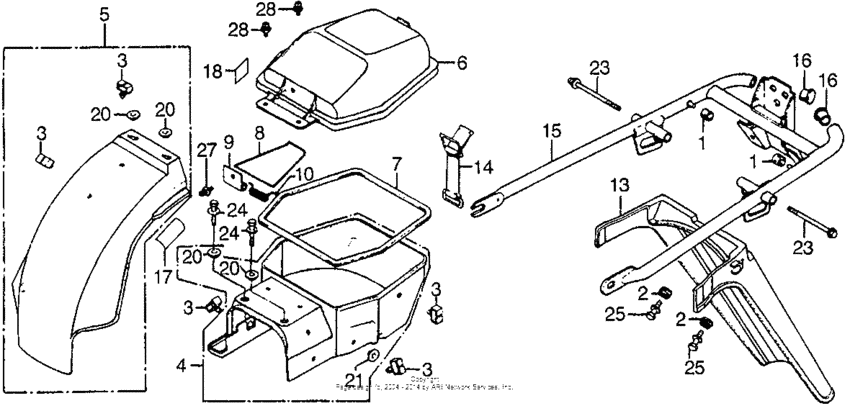

Rear fender Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17611-045-670 Cushion,tank,fr |
17611-045-670 |
from US $6.96 |
||
|
2
|
2
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
3
|
3
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
4
|
4
80100-392-000
Fender a,rear
|
80100-392-000 |
— | ||
|
5
|
5
80105-341-010
Fender b, rear
|
80105-341-010 |
— | ||
|
6
|
6
80110-392-000
Cap a,rr.fender
|
80110-392-000 |
— | ||
|
7
|
7
80111-392-000
Rubber,rr.fender
|
80111-392-000 |
— | ||
|
8
|
8
80112-392-000
Bar,clamp
|
80112-392-000 |
— | ||
|
9
|
9
80113-392-000
Base,clamp
|
80113-392-000 |
— | ||
|
10
|
10
80114-392-000
Spring,return
|
80114-392-000 |
— | ||
|
13
|
13
80250-410-000
Fender c,rr.
|
80250-410-000 |
— | ||
|
14
|
14
83606-356-000 Band, side cover |
83606-356-000 |
from US $17.20 |
||
|
15
|
15
84101-410-000
Bumper,rr.
|
84101-410-000 |
— | ||
|
16
|
16
84103-392-000 Cap, rr. bumper |
84103-392-000 |
from US $4.29 |
||
|
17
|
17
87506-405-770
Mark
|
87506-405-770 |
— | ||
|
18
|
18
87512-371-670
Mark,caution
|
87512-371-670 |
— | ||
|
20
|
20
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
21
|
21
90512-392-000
Washer,8x20
|
90512-392-000 |
— | ||
|
23
|
23
92600-08085-0B Bolt,hex cap 8x85 |
92600-08085-0B |
US $2.66 |
||
|
24
|
24
93401-0602800 Bolt-washer (6x28) |
93401-0602800 |
from US $0.59 |
||
|
25
|
25
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
25
|
25
93494-060-200-8
Bolt-washer
|
93494-060-200-8 |
— | ||
| replacement | |||||
|
25
|
25
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
27
|
27
93891-040-080-7 Screw-washer4X8 |
93891-040-080-7 |
from US $0.44 |
||
|
28
|
28
93891-040-160-7 Screw-washer4X16 |
93891-040-160-7 |
from US $0.44 |
||
