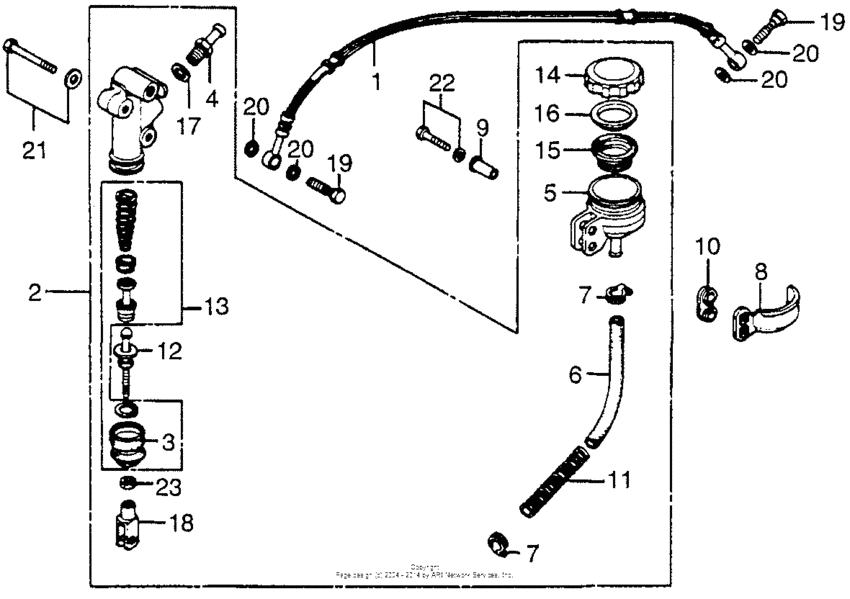

Rear master cylinder Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43310-410-003
Hose,rr.brake
|
43310-410-003 |
— | ||
|
2
|
2
43500-405-023
*43510-405-p00
Use up to Frame SN 2213679 |
43500-405-023 |
— | ||
|
3
|
3
43504-371-003
Boot,master cyln.
Use up to Frame SN 2252910 |
43504-371-003 |
— | ||
|
3
|
3
43504-371-013 Boot,mas.cylinderUse from Frame SN 2252911 |
43504-371-013 |
from US $7.99 |
||
|
4
|
4
43505-410-003
Conn.,master cyln
|
43505-410-003 |
— | ||
|
5
|
5
43511-410-003
Cup,mas.cyln.oil
|
43511-410-003 |
— | ||
|
6
|
6
43512-410-013
Hose,master cylin
|
43512-410-013 |
— | ||
|
7
|
7
43514-964-006 Clamp |
43514-964-006 |
from US $11.84 |
||
|
8
|
8
43514-410-000
Cover,master cup
|
43514-410-000 |
— | ||
|
9
|
9
43515-410-000
Collar,master cup
|
43515-410-000 |
— | ||
|
10
|
10
43516-410-000
Rubber,mas.mount
|
43516-410-000 |
— | ||
|
11
|
11
43525-410-000
Guard,oil hose
|
43525-410-000 |
— | ||
|
12
|
12
43530-392-003
Rod comp., push
|
43530-392-003 |
— | ||
|
13
|
13
43530-410-305
Cyln.set,rr.mas.
|
43530-410-305 |
— | ||
|
14
|
14
43513-MJ6-006 Cap,oil cup |
43513-MJ6-006 |
US $22.03 |
||
|
15
|
15
45520-300-000 Diaphragm |
45520-300-000 |
from US $7.99 |
||
|
16
|
16
45521-MJ6-006 Plate, diaphragm |
45521-MJ6-006 |
from US $4.22 |
||
|
17
|
17
46402-642-910
Packing
|
46402-642-910 |
— | ||
|
18
|
18
46504-371-000
Joint, brake rod
|
46504-371-000 |
— | ||
|
19
|
19
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
20
|
20
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
21
|
21
93481-080-450-0 Bolt-washer,8x45 |
93481-080-450-0 |
US $0.81 |
||
|
22
|
22
93482-060-250-0 Bolt-washer,6x25 |
93482-060-250-0 |
US $0.59 |
||
|
23
|
23
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
