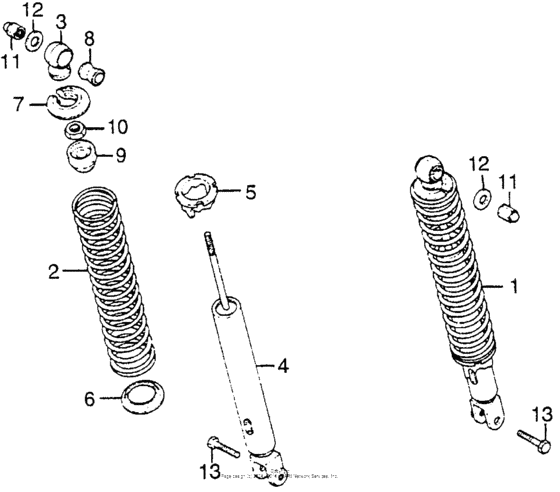

Rear shock absorber Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-410-013
Cushion assy,rr.
|
52400-410-013 |
— | ||
|
2
|
2
52401-410-010ZA
Spring,cush*nh-1*
|
52401-410-010ZA |
— | ||
|
3
|
3
52403-410-013
Joint comp,upper
|
52403-410-013 |
— | ||
|
4
|
4
52410-410-003
Damper comp.,rr.
|
52410-410-003 |
— | ||
|
5
|
5
52422-410-003 Adjuster,spring |
52422-410-003 |
US $25.64 |
||
|
6
|
6
52458-410-003
Seat,spring under
|
52458-410-003 |
— | ||
|
8
|
8
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
9
|
9
52517-410-003
Rubber, stopper
|
52517-410-003 |
— | ||
|
10
|
10
90301-376-003
Nut, hex. (11mm)
|
90301-376-003 |
— | ||
|
11
|
11
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
12
|
12
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
13
|
13
93201-100-320-B Bolt, hex. (10x32) |
93201-100-320-B |
from US $0.96 |
