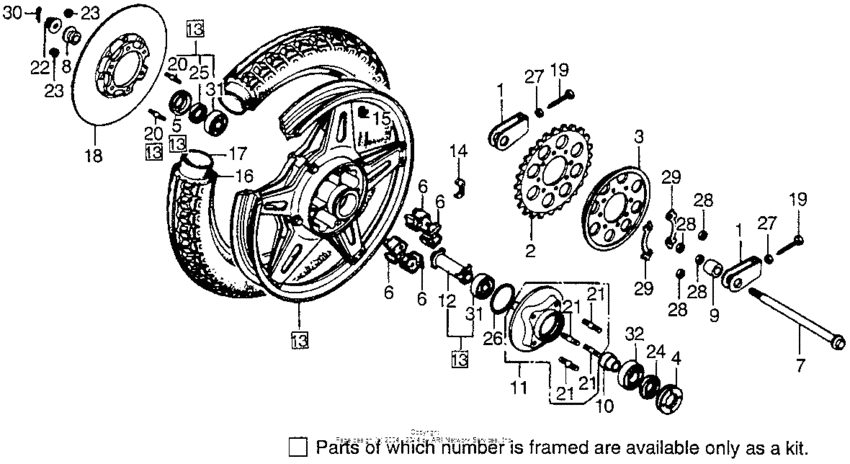

Rear wheel + disc Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-392-000
Adjuster,chain
|
40543-392-000 |
— | ||
|
2
|
2
41201-410-000
Sprocket,driven
|
41201-410-000 |
— | ||
|
3
|
3
41211-405-000
Plate,sprkt.side
|
41211-405-000 |
— | ||
|
4
|
4
41231-283-000 Retainer, bearing |
41231-283-000 |
US $50.32 |
||
|
5
|
5
41231-286-000 Retainer,bearing |
41231-286-000 |
from US $29.78 |
||
|
6
|
6
41241-300-050 Damper,rr.wheel |
41241-300-050 |
from US $16.43 |
||
|
7
|
7
42301-425-870
Axle,rr.wheel
|
42301-425-870 |
— | ||
|
8
|
8
42311-357-010
Collar,rr.wheel
|
42311-357-010 |
— | ||
|
9
|
9
42311-392-000
Coller,rr.wheel
|
42311-392-000 |
— | ||
| replacement | |||||
|
9
|
9
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
9
|
9
42311-425-870
Collar,wheel side
|
42311-425-870 |
— | ||
|
10
|
10
42605-393-000
Sleeve, rr. axle
|
42605-393-000 |
— | ||
|
11
|
11
42610-405-000
Flange,driven
|
42610-405-000 |
— | ||
|
12
|
12
42620-392-000
Collar,distance
|
42620-392-000 |
— | ||
|
13
|
13
42660-410-670
Wheel sub, rr.
|
42660-410-670 |
— | ||
|
14
|
14
42703-410-003
Mark,rr.spoke pl.
|
42703-410-003 |
— | ||
|
15
|
15
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
15
|
15
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
16
|
16
42711-341-003 Tire400h184ps21r2 |
42711-341-003 |
US $70.48 |
||
|
17
|
17
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
17
|
17
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
17
|
17
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
18
|
18
43120-371-000
Disk comp,brake
|
43120-371-000 |
— | ||
|
19
|
19
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
20
|
20
90125-329-010
Bolt, stud (8x45)
|
90125-329-010 |
— | ||
|
21
|
21
90128-341-000
Bolt,stud,12x54
|
90128-341-000 |
— | ||
|
22
|
22
90305-393-000
Nut,axle 18mm
|
90305-393-000 |
— | ||
|
23
|
23
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
24
|
24
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
25
|
25
91253-286-013 Dust-seal30-45-95 |
91253-286-013 |
from US $9.57 |
||
|
26
|
26
91258-300-013 D ring, |
91258-300-013 |
from US $7.25 |
||
|
27
|
27
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
28
|
28
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
29
|
29
94108-17000 Washer,a7,tongued |
94108-17000 |
US $0.89 |
||
|
30
|
30
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
31
|
31
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
32
|
32
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
