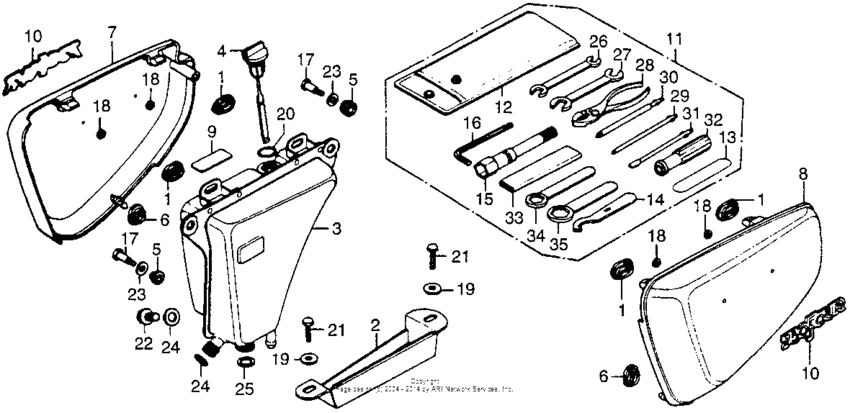

Side cover + oil tank + tools Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
50341-392-000
Tray, tool
|
50341-392-000 |
— | ||
|
3
|
3
55100-392-000
Tank comp., oil
|
55100-392-000 |
— | ||
|
4
|
4
55105-392-000
Guage, oil level
|
55105-392-000 |
— | ||
|
5
|
5
55106-300-000 Rubber oil tank |
55106-300-000 |
from US $6.21 |
||
|
6
|
6
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
7
|
7
83600-392-000ZB
Cover,r.*r-8c-s*
|
83600-392-000ZB |
— | ||
|
7
|
7
83600-392-000ZD
Cover,r.side*nh-1
|
83600-392-000ZD |
— | ||
|
8
|
8
83700-410-000ZA
Cover,l.*r-8c-s*
|
83700-410-000ZA |
— | ||
|
8
|
8
83700-410-000ZC
Cover,l. *nh-1*
|
83700-410-000ZC |
— | ||
|
9
|
9
87125-392-771
Plate,oil caution
|
87125-392-771 |
— | ||
|
10
|
10
87127-410-770
Emblem,side cover
|
87127-410-770 |
— | ||
|
11
|
11
89010-410-000
Tool assy
|
89010-410-000 |
— | ||
|
12
|
12
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
12
|
12
89101-371-013 Bag, tool |
89101-371-013 |
US $6.72 |
||
|
13
|
13
89103-371-000 Gauge, feeler (0.7) |
89103-371-000 |
from US $3.70 |
||
|
14
|
14
89215-404-670 Wrench, pin |
89215-404-670 |
from US $10.46 |
||
|
15
|
15
89216-323-000
Wrench,plug
|
89216-323-000 |
— | ||
|
16
|
16
89221-371-000 Wrench, hex., 6mm |
89221-371-000 |
from US $7.02 |
||
|
17
|
17
90141-300-000 Bolt 6m/m a |
90141-300-000 |
US $10.80 |
||
|
18
|
18
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
19
|
19
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
20
|
20
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
21
|
21
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
22
|
22
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
23
|
23
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
24
|
24
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
25
|
25
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
26
|
26
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
27
|
27
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
28
|
28
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
28
|
28
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
29
|
29
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
30
|
30
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
31
|
31
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
32
|
32
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
33
|
33
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
34
|
34
99006-22000 Wrench, eye (22mm) |
99006-22000 |
from US $5.18 |
||
|
35
|
35
9900624000 Wrench, eye (24mm) |
9900624000 |
from US $5.33 |
||
