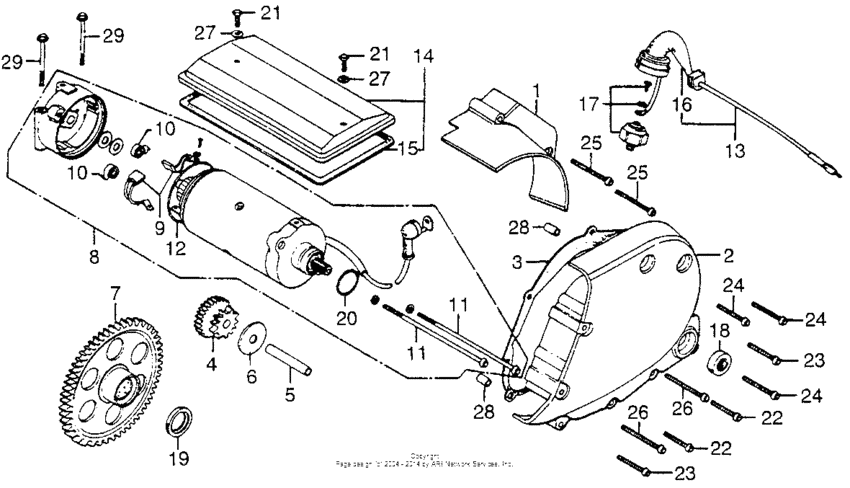

Starter motor + crankcase cover Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11351-410-010
Cover, l. rr.
|
11351-410-010 |
— | ||
|
2
|
2
11360-410-010
Cover, crankcase
|
11360-410-010 |
— | ||
|
3
|
3
11395-300-306 Gasket, trans cvr |
11395-300-306 |
from US $23.56 |
||
|
4
|
4
28101-300-000
Gear,reduction
|
28101-300-000 |
— | ||
|
5
|
5
28106-300-000
Shaft,reduction
|
28106-300-000 |
— | ||
|
6
|
6
28109-300-000
Pl,gear set
|
28109-300-000 |
— | ||
|
7
|
7
28110-300-000
Gear,starting
|
28110-300-000 |
— | ||
|
8
|
8
31200-300-030 Motor,starting |
31200-300-030 |
US $571.52 |
||
|
9
|
9
31201-292-158 Brush.set,motor |
31201-292-158 |
from US $31.88 |
||
|
10
|
10
31204-292-158 Spring, carbon brush |
31204-292-158 |
from US $6.07 |
||
|
11
|
11
31205-286-158
Set bt.gear cover
|
31205-286-158 |
— | ||
|
12
|
12
31206-402-008 O-ring (60x1.4) |
31206-402-008 |
US $11.40 |
||
|
13
|
13
31270-300-005
Cord,oil press.sw
|
31270-300-005 |
— | ||
|
13
|
13
31270-300-154
Cord,oil press.sw
|
31270-300-154 |
— | ||
|
14
|
14
31280-300-000
Cover,starter
|
31280-300-000 |
— | ||
|
15
|
15
31282-300-020
Packing cover
|
31282-300-020 |
— | ||
|
16
|
16
31283-300-000
Gromet,cord
|
31283-300-000 |
— | ||
|
17
|
17
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $20.67 |
||
|
18
|
18
91206-286-013 Oil seal, 14x28x7 (arai) |
91206-286-013 |
from US $4.44 |
||
|
19
|
19
91215-300-003 Oil seal |
91215-300-003 |
US $10.57 |
||
|
20
|
20
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
21
|
21
92101-06012-0B Bolt, hex., 6x12 |
92101-06012-0B |
from US $0.59 |
||
|
22
|
22
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
23
|
23
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
24
|
24
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
25
|
25
93500-060-500-A Screw,pan,6x50 |
93500-060-500-A |
from US $0.59 |
||
|
26
|
26
93500-060550A Screw, pan, 6x55 |
93500-060550A |
from US $0.59 |
||
|
27
|
27
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
28
|
28
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
29
|
29
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
