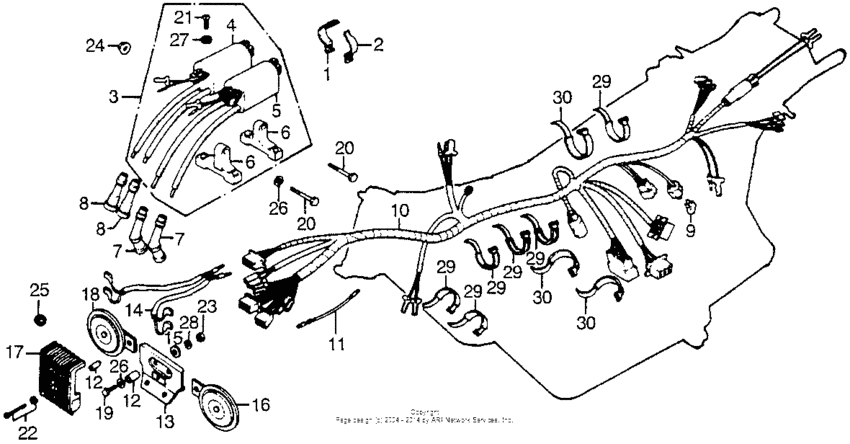

Wire harness + horn Diagram Honda CB750
- Year
- 1978
- Model code
- CB750F A
- Sales region
- USA
- Frame
- CB750F2200001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30151-300-000
Band a
|
30151-300-000 |
— | ||
|
2
|
2
30152-300-000
Band b
|
30152-300-000 |
— | ||
|
3
|
3
30500-300-013 Coil,ignition |
30500-300-013 |
from US $317.02 |
||
|
4
|
4
30501-300-003
Coil,r.ignition
|
30501-300-003 |
— | ||
|
5
|
5
30502-300-003
Coil,l.iginition
|
30502-300-003 |
— | ||
|
6
|
6
30511-300-000
Bracket ignition
|
30511-300-000 |
— | ||
|
7
|
7
30700-GAR-000 Cap assy. |
30700-GAR-000 |
from US $16.86 |
||
|
8
|
8
30700-MW3-000 Cap assy. |
30700-MW3-000 |
from US $13.55 |
||
|
9
|
9
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
10
|
10
32100-410-010
Harness,wire
|
32100-410-010 |
— | ||
|
11
|
11
32105-404-670
Cable, sub
|
32105-404-670 |
— | ||
|
12
|
12
37312-051-740
Collar,meter
|
37312-051-740 |
— | ||
|
13
|
13
38102-410-004
Stay,horn
|
38102-410-004 |
— | ||
|
14
|
14
38105-410-671
Cable, horn sub
|
38105-410-671 |
— | ||
|
15
|
15
38106-410-004
Washer,plain,20mm
|
38106-410-004 |
— | ||
|
16
|
16
38110-GT8-621 Horn comp. (high) (mitsuba) |
38110-GT8-621 |
from US $52.25 |
||
|
17
|
17
38111-410-000
Emblem,horn
|
38111-410-000 |
— | ||
|
18
|
18
38120-438-601
Horn comp.(low)
|
38120-438-601 |
— | ||
|
19
|
19
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
20
|
20
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
21
|
21
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
22
|
22
93891-0502007 Screw-washer, 5x20 |
93891-0502007 |
from US $0.44 |
||
|
23
|
23
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
28
|
28
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
29
|
29
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
30
|
30
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
