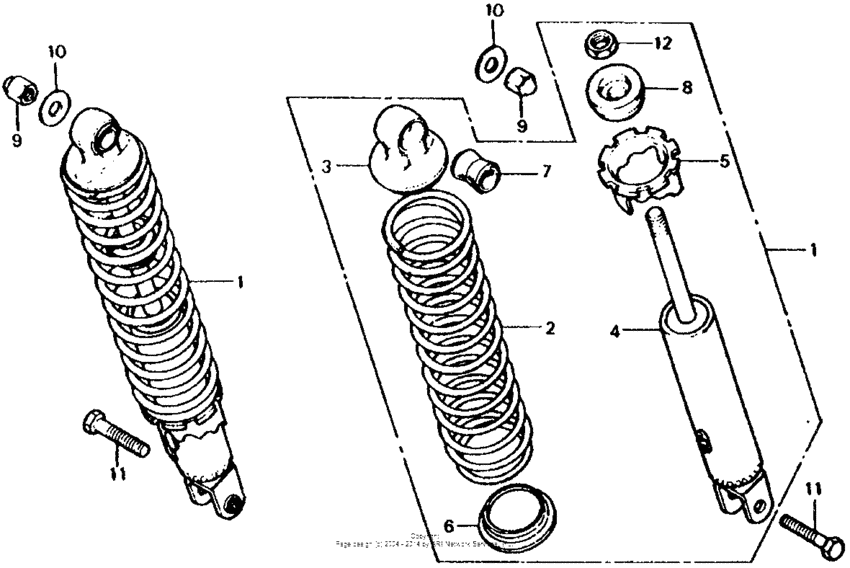

Rear shock absorber 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750F A
- Sales region
- USA
- Frame
- RC042000023 - RC042010669
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-MA4-673
Cushion assy.,rr.
|
52400-MA4-673 |
— | ||
|
2
|
2
52401-425-010
Spg.,rr.cushion
|
52401-425-010 |
— | ||
|
3
|
3
52403-425-003 Joint comp.,upper |
52403-425-003 |
US $21.51 |
||
|
4
|
4
52410-425-013
Damper comp.,rr.
|
52410-425-013 |
— | ||
|
5
|
5
52422-404-003 Adjuster, spring |
52422-404-003 |
from US $14.69 |
||
|
6
|
6
52458-329-000 Seat,under spring |
52458-329-000 |
US $5.40 |
||
|
7
|
7
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
8
|
8
52517-404-003 Rubber, stopper |
52517-404-003 |
US $4.74 |
||
|
9
|
9
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
10
|
10
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
11
|
11
93201-100-320-B Bolt, hex. (10x32) |
93201-100-320-B |
from US $0.96 |
||
|
12
|
12
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
