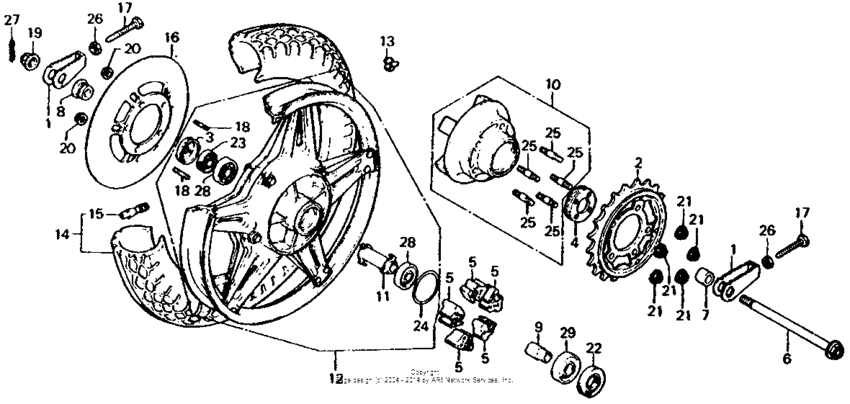

Rear wheel 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750F A
- Sales region
- USA
- Frame
- RC042000023 - RC042010669
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-438-000
Adjuster, chain
|
40543-438-000 |
— | ||
|
2
|
2
41200-445-670
Sprkt.final driv.
|
41200-445-670 |
— | ||
|
3
|
3
41231-286-000 Retainer,bearing |
41231-286-000 |
from US $29.78 |
||
|
4
|
4
41231-422-000
Ret,rr.wheel brg.
|
41231-422-000 |
— | ||
|
5
|
5
41241-422-000 Damper.rr.wheel |
41241-422-000 |
US $18.09 |
||
|
6
|
6
42301-445-000
Axle,rr.wheel
|
42301-445-000 |
— | ||
|
7
|
7
42311-425-700
Collar,wheel side
|
42311-425-700 |
— | ||
|
8
|
8
42313-422-000 Collar, rr. |
42313-422-000 |
from US $31.36 |
||
|
9
|
9
42605-393-000
Sleeve, rr. axle
|
42605-393-000 |
— | ||
|
10
|
10
42610-422-000
Flange, final driven
|
42610-422-000 |
— | ||
|
11
|
11
42620-422-010
Collar,axle dist.
|
42620-422-010 |
— | ||
|
12
|
12
42650-422-315
Wheel comp.,rr.
Use up to Frame SN 2001539 |
42650-422-315 |
— | ||
|
13
|
13
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
13
|
13
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
14
|
14
42710-445-671 Tire, rr. (4.00h18) |
42710-445-671 |
US $86.21 |
||
|
14
|
14
42710-445-672 Tire, rr. (4.00h18) |
42710-445-672 |
US $92.09 |
||
|
15
|
15
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
16
|
16
43121-422-000
Disk,rr.brake
|
43121-422-000 |
— | ||
|
17
|
17
90119-438-000
Bolt,chain adj.
|
90119-438-000 |
— | ||
|
18
|
18
90125-329-010
Bolt, stud (8x45)
|
90125-329-010 |
— | ||
|
19
|
19
90305-393-000
Nut,axle 18mm
|
90305-393-000 |
— | ||
|
20
|
20
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
21
|
21
90309-375-003 Nut, flange (12mm) |
90309-375-003 |
from US $7.40 |
||
|
22
|
22
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
23
|
23
91253-286-013 Dust-seal30-45-95 |
91253-286-013 |
from US $9.57 |
||
|
24
|
24
91258-300-013 D ring, |
91258-300-013 |
from US $7.25 |
||
|
25
|
25
92716-12055-0E
Bolt,stud,12x55
|
92716-12055-0E |
— | ||
|
26
|
26
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
27
|
27
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
28
|
28
96140-6304010 Bearing (6304u)Use up to Frame SN 2001539 |
96140-6304010 |
from US $11.56 |
||
|
28
|
28
96150-6304010 Bearing, radial ball, 6304uuUse from Frame SN 2001540 |
96150-6304010 |
from US $11.40 |
||
|
29
|
29
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
