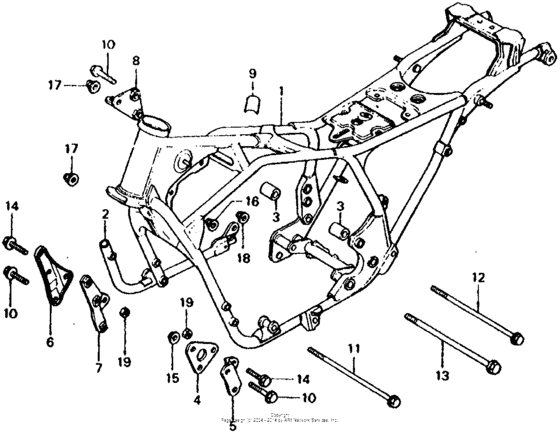

Frame Diagram Honda CB750
- Year
- 1980
- Model code
- CB750F A
- Sales region
- USA
- Frame
- RC042100003 - RC042116089
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-445-771ZA
Frame *nh1*
Use up to Frame SN 2110584 |
50100-445-771ZA |
— | ||
|
2
|
2
50122-425-020
Pipe,joint
|
50122-425-020 |
— | ||
|
2
|
2
50122-425-020ZA
Pipe,joint *nh-1*
|
50122-425-020ZA |
— | ||
|
3
|
3
50327-425-000
Collar,r.engine
|
50327-425-000 |
— | ||
|
4
|
4
50351-438-000ZA
Pl,fr.hang.*nh-1*
|
50351-438-000ZA |
— | ||
|
5
|
5
50352-438-000 Plate,eng.hanger |
50352-438-000 |
US $21.13 |
||
|
5
|
5
50352-438-000ZA
Pl,fr.hang.*nh-1*
|
50352-438-000ZA |
— | ||
|
6
|
6
50353-438-000ZA
Pl,hanger *nh-1*
|
50353-438-000ZA |
— | ||
|
7
|
7
50354-438-000
Plate,eng.hanger
Use up to Frame SN 2104729 |
50354-438-000 |
— | ||
|
7
|
7
50354-438-010ZA
Pl,hanger *nh-1*
Use from Frame SN 2104730 |
50354-438-010ZA |
— | ||
|
8
|
8
50356-425-020
Brkt,rr.eng.hang.
|
50356-425-020 |
— | ||
|
8
|
8
50356-425-020ZA
Brkt,hanger*nh-1*
|
50356-425-020ZA |
— | ||
|
10
|
10
90156-KA6-770
Bolt, flange (8x62)
|
90156-KA6-770 |
— | ||
|
11
|
11
90152-425-000
Bolt,flg.10x330
|
90152-425-000 |
— | ||
|
12
|
12
90156-425-830
Bolt,eng.10x284
|
90156-425-830 |
— | ||
|
13
|
13
90157-445-770
Bolt,eng,lower
|
90157-445-770 |
— | ||
|
14
|
14
95801-1005000 Bolt, flange (10x50)Use up to Frame SN 2105979 |
95801-1005000 |
from US $0.89 |
||
|
14
|
14
95801-1006000 Bolt, flange, 10x60Use from Frame SN 2105980 |
95801-1006000 |
from US $0.93 |
||
|
15
|
15
90202-425-870
Nut,flange,8mm
|
90202-425-870 |
— | ||
|
16
|
16
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
17
|
17
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
18
|
18
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
19
|
19
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
