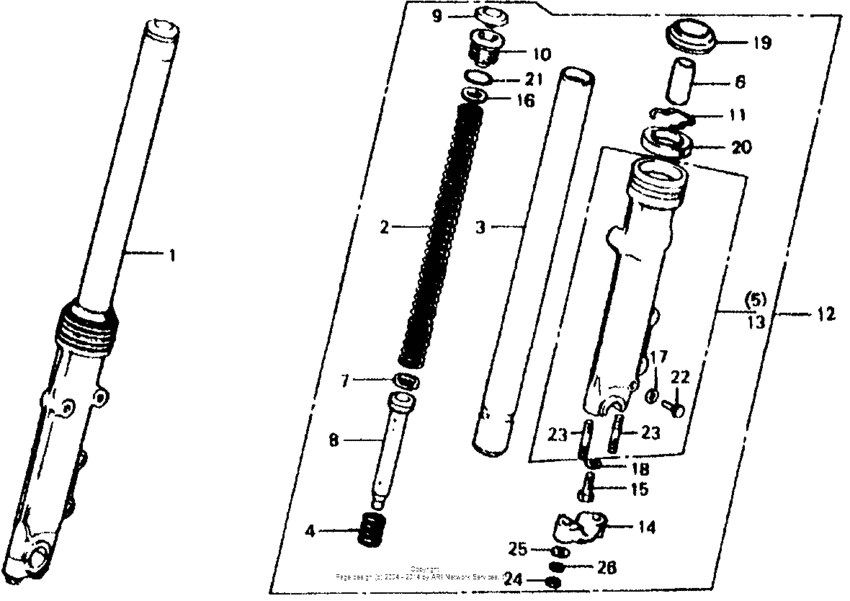

Front fork 79-80 Diagram Honda CB750
- Year
- 1980
- Model code
- CB750F A
- Sales region
- USA
- Frame
- RC042100003 - RC042116089
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-445-013
Fork assy.,r.fr.
Use up to Frame SN 2110584 |
51400-445-013 |
— | ||
|
2
|
2
51401-425-000
Spring,fr.cushion
|
51401-425-000 |
— | ||
|
3
|
3
51410-425-003
Pipe.,fr.fork
|
51410-425-003 |
— | ||
|
4
|
4
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
5
|
5
51421-445-003
Case,r.bottom
|
51421-445-003 |
— | ||
|
6
|
6
51432-371-003
Piece, oil lock
|
51432-371-003 |
— | ||
|
7
|
7
51437-400-771 Ring, piston |
51437-400-771 |
from US $4.30 |
||
|
8
|
8
51440-425-003
Pipe,seat
|
51440-425-003 |
— | ||
|
9
|
9
51449-428-003 Cap,fork pipe |
51449-428-003 |
US $6.07 |
||
|
10
|
10
51454-422-003
Bolt,fr.fork
|
51454-422-003 |
— | ||
|
10
|
10
51454-428-003
Bolt,fr.fork
|
51454-428-003 |
— | ||
|
11
|
11
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
12
|
12
51500-445-013
Fork assy.,l.fr.
Use up to Frame SN 2110584 |
51500-445-013 |
— | ||
|
13
|
13
51521-445-003
Case,l.bottom
|
51521-445-003 |
— | ||
|
14
|
14
95014-41100 Holder,axle |
95014-41100 |
US $9.92 |
||
|
15
|
15
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
16
|
16
90504-425-003
Washer,fr.fork
|
90504-425-003 |
— | ||
|
17
|
17
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
18
|
18
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
19
|
19
91254-434-003 Dust seal,35mmUse up to Frame SN 2110584 |
91254-434-003 |
from US $11.19 |
||
|
20
|
20
91255-KBH-003 Seal,oil,35x48x11Use up to Frame SN 2110584 |
91255-KBH-003 |
from US $11.99 |
||
|
21
|
21
91356-428-003 O-ring (25.7x2.8) |
91356-428-003 |
from US $3.92 |
||
|
22
|
22
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
23
|
23
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
24
|
24
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
25
|
25
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
